FOR HEAVY DUTY WORK…

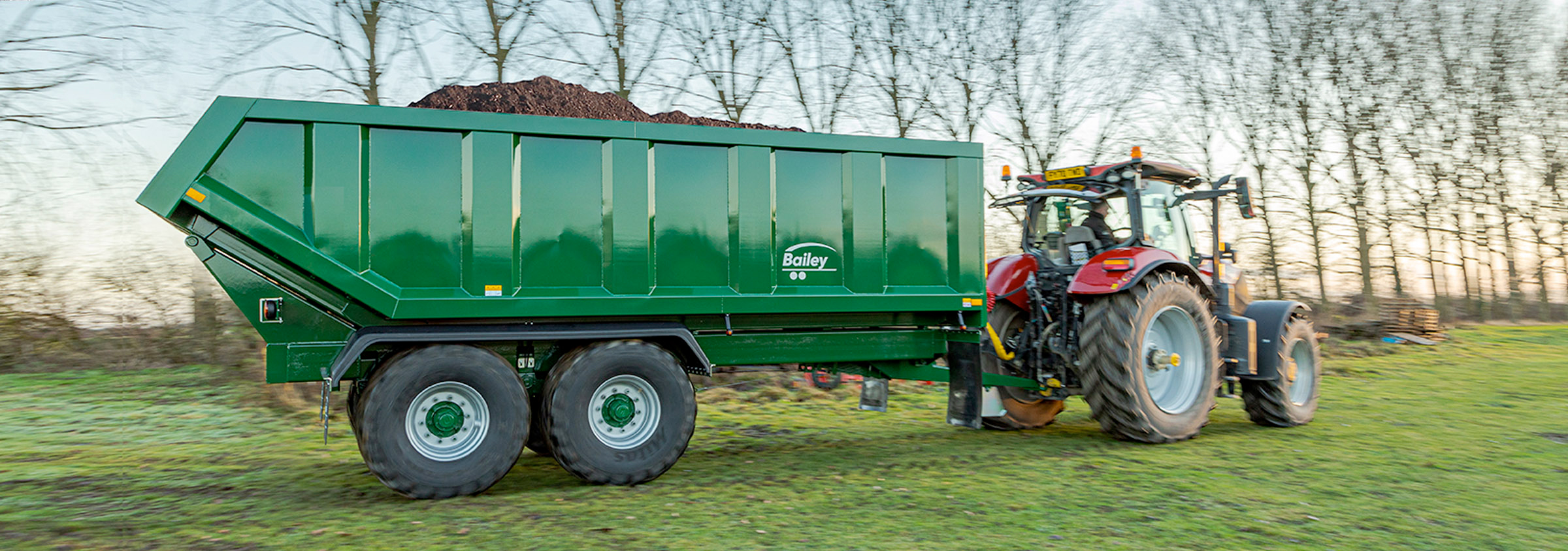

Agricultural Dumpers feature a heavy-duty RHS bottom chassis mounted on a heavyduty tandem spring unit. This provides additional strength and durability.

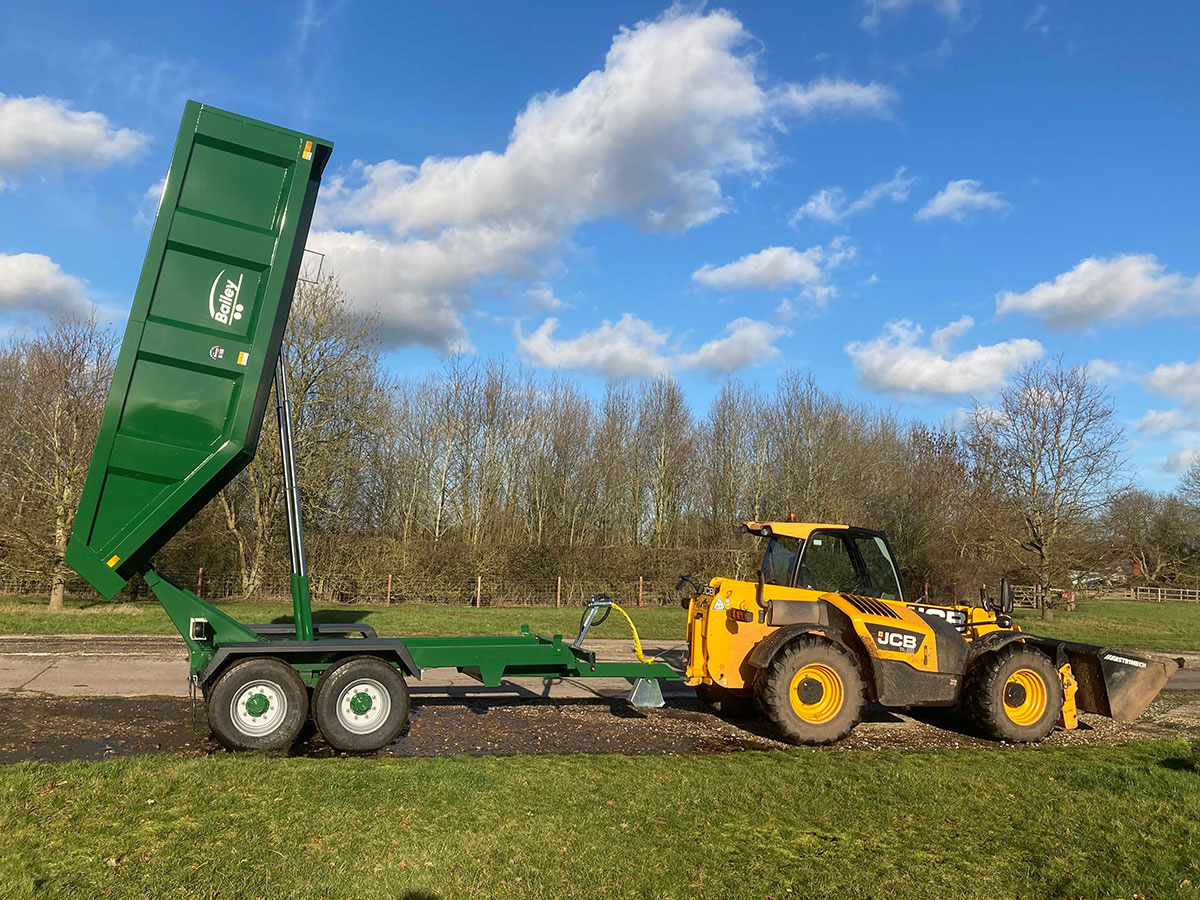

An impressive tipping angle is achieved via twin extra-long reach 3 stage hydraulic cylinders. To protect against wear and tear Agricultural Dumpers are built with 4mm sides, strengthening channels and 4mm floors with hollow section runners at 300 mm centres.
Fitted on a heavy-duty tandem suspension.
ENQUIRE NOW
Ready to configure your Agricultural Dumper?
Find your preferred Bailey Trailers distributor using the dropdowns below – first choose your region, then select your dealer, and finally click ‘View Details’.
STANDARD FEATURES
✓ Independent hydraulic brakes
✓ Sprung drawbar (on 12t, 14t and 16t)
✓ Heavy-duty EN8 towing eye
✓ Parking brakes
✓ Skid & skid carrier
✓ LED lights
✓ LED beacon
✓ Chromed rams
✓ Body prop
✓ Anti-chip paint on headboard
✓ Hydraulic hose carrier
SIZES / DIMENSIONS / TYRES
Model |
Capacity m3 |
LxWxH mm |
Loading height mm |
Tyres |
Axle(s) mm/stud |
Sprung d/bar |
Dump 8 |
11.50 |
4630x2500x1225 |
2415 |
435/50 R19.5 |
2x80/8 |
Option |
Dump 10 |
13.80 |
5430x2500x1225 |
2570 |
385/65 R22.5 |
2x90/8 |
Option |
Dump 12 |
16.50 |
6030x2500x1300 |
2645 |
385/65 R22.5 |
2xcom/10 |
STD |
Dump 14 |
19.50 |
6030x2500x1525 |
2870 |
385/65 R22.5 |
2xcom/10 |
STD |
Dump 16 |
21.70 |
6630x2500x1525 |
2920 |
385/65 R22.5 |
2xcom/10 |
STD |
WINDOWS
✓ Front window
✓ Full front window
SHEETING
✓ Hydraulic Front to Back Sheet
DOORS
✓ Hydraulic Fold Down Door
SIDES AND FLOORS
✓ Extra depth (75mm stages)
✓ Extra thick floor
✓ Extra thick sides
✓ Extension Sides
LIGHTS
✓ Extra Flashing Beacon
✓ On/Off Switch for Flashing Beacon
✓ Reversing Lights & Mudflaps
✓ High Visibility Safety Strips
TOWING EYES
✓ Rear Towing Eye
✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – Cup Ball
✓ Scharmuller Hitch – Hitch Eye
GUARDS, BRAKES AND SUSPENSION
✓ Sprung Drawbar (8t and 10t)
✓ Metal Mudguards with Flaps
✓ Front Rubber Mudflaps
✓ Air Brakes with Load Sensing (12t-16t)
✓ Auto Slack Adjusters (12t-16t)
✓ ABS Brakes and Air Brakes with Load Sensing (12t-16t)
✓ Hydraulic Brake Load Sensing
MISCELLANEOUS
✓ Fold Up Trailer Skid (Shoe)
✓ Greasing Bank (Suspension and Axles)
✓ Hinged Rear Draw Bar (Hydraulic to Rear)
✓ Hinged Rear Draw Bar (Hydraulic and Air to Rear)
✓ Jack – Screw
✓ Jack – Hydraulic
✓ Jack – Hydraulic w/Hand Pump
✓ Reversing Camera
✓ Storage Rack
✓ Twin Tipping Pipes
✓ Toolbox
✓ Electric / Hydraulic Weighing System
✓ Load Cell Weighing System
✓ Wooden Nudge Bar
✓ Wheel Nut Indicators
✓ Bespoke Colour
CLICK ON ANY IMAGE TO SEE A LARGER VERSION

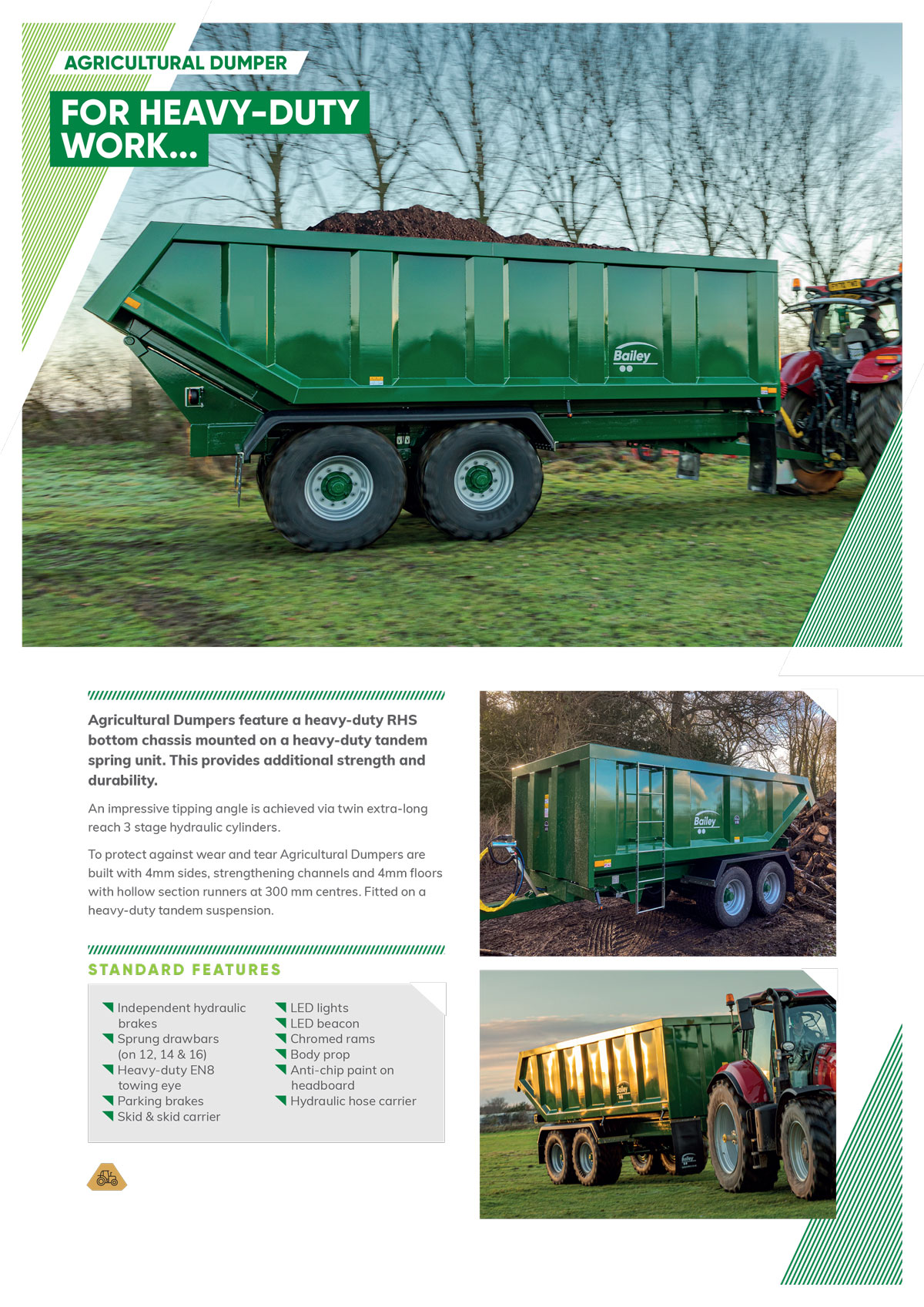

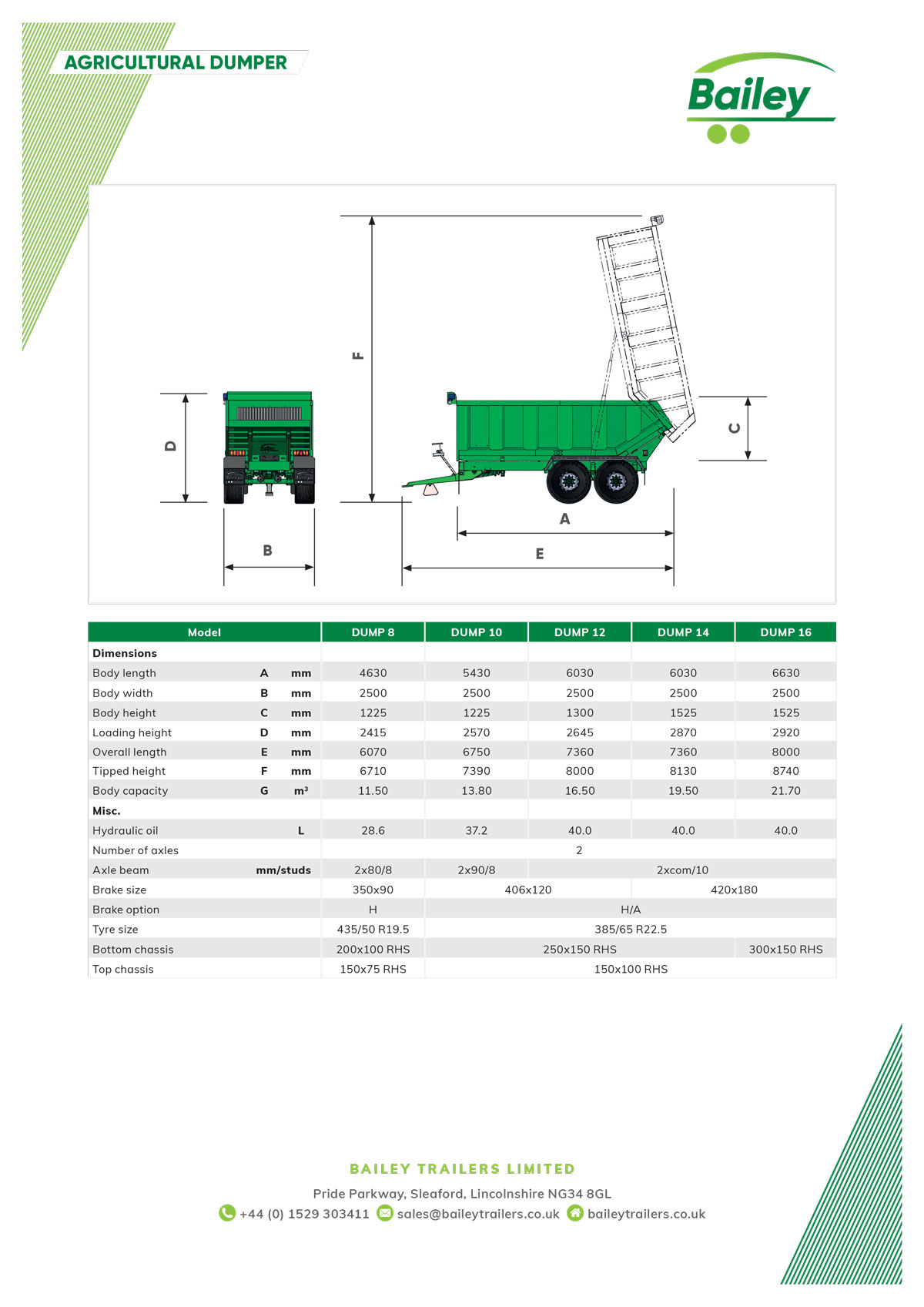

AGRICULTURAL DUMPER SPEC SHEET PDF
Download your Agricultural Dumper range specification sheet (featuring full CD drawings and additional technical information) as a PDF for easy offline viewing.
