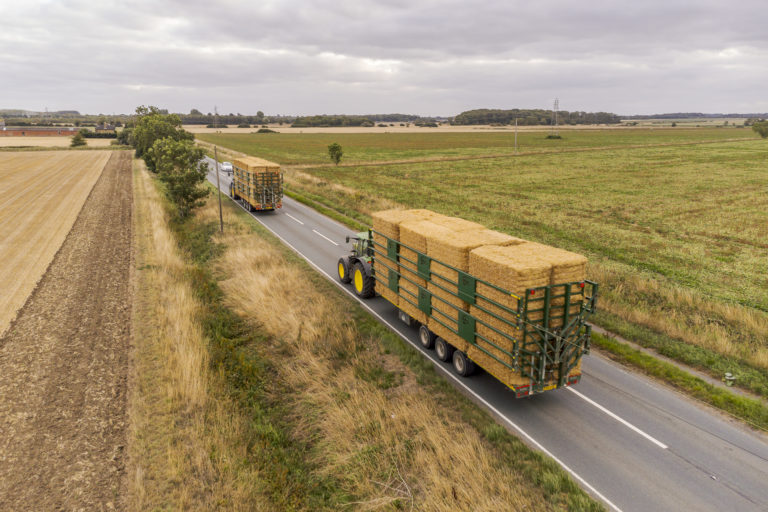

FROM BALES TO BOXES…
Bale and Pallet trailers are mounted on 8 or 10 mm RHS chassis with heavy-duty axles on tandem springs. All models are 2500 mm / 8’2” overall width and fitted with a 4.5 mm chequer plate floor with 60 x 40 RHS floor runners at 300 mm centres.

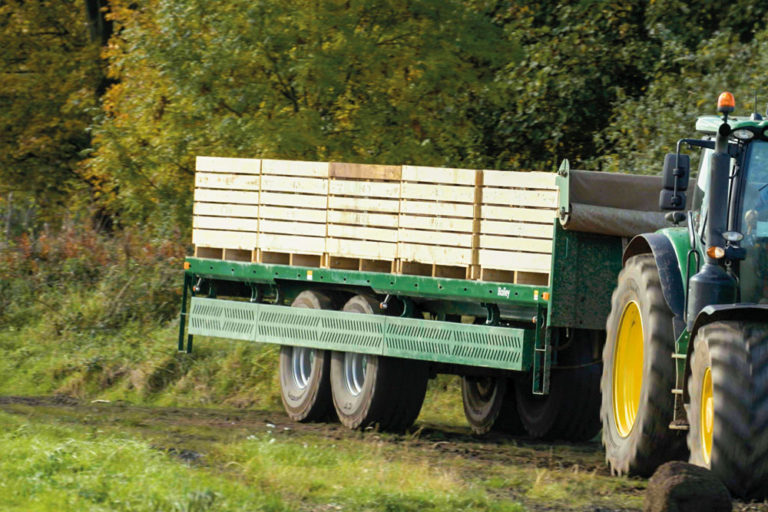

Bale trailers have heavy-duty 8 mm side rails and a 600 mm high headboard for safe and secure loading of pallets, bags and boxes.
Features include: hydraulic working platform to aid filling of potato boxes; Box Pusher and Rollover Sheet for safe transportation of load.
ENQUIRE NOW
Ready to configure your Bale & Pallet trailer?
Find your preferred Bailey Trailers distributor using the dropdowns below – first choose your region, then select your dealer, and finally click ‘View Details’.
STANDARD FEATURES
✓ Independent hydraulic brakes
✓ Flat 16-20 air brakes and load sensing
✓ Parking brakes
✓ Heavy-duty EN8 towing eye
✓ Hydraulic hose carrier
✓ Skid & skid carrier
✓ Strap points
✓ Chequer plate floor fitted as standard; state if flat floor required
✓ LED lights & beacon
✓ Front steps
✓ Number plate holder
✓ Toolbox
✓ Anti-chip paint on headboard
✓ Fifth wheel coupling (20t model)
✓ Sprung drawbar (16t & 18t models)
SIZES / DIMENSIONS / TYRES
Model |
Length mm (feet/inches) |
Loading height mm |
Tyres |
Axle(s) mm/stud |
Sprung d/bar |
Brakes |
Flat 6 |
5700 (18'8") |
1020 |
12.5/80x15.3 |
1x70/6 |
n/a |
Hydraulic Brakes |
Flat 8 |
6600 (21'8") |
1070 |
12.5/80x15.3 |
2x70/6 |
Option |
Hydraulic Brakes |
Flat 10 |
7500 (24'7") |
1220 |
385/65 R22.5 |
2x90/8 |
Option |
Hydraulic Brakes |
Flat 12 |
8400 (27'7") |
1220 |
385/65 R22.5 |
2x90/8 |
Option |
Hydraulic Brakes |
Flat 14 |
9300 (30'6") |
1220 |
385/65 R22.5 |
2xcom/10 |
Option |
Hydraulic Brakes |
Flat 16 |
10200 (33'6") |
1220 |
385/65 R22.5 |
2xcom/10 |
STD |
Air Brakes |
Flat 18 |
11100 (36'5") |
1270 |
385/65 R22.5 |
2xcom/10 |
STD |
Air Brakes |
Flat 20* |
12000 (39'4") |
1070 |
435/50 R19.5 |
4xcom/10 |
n/a |
Air Brakes |
LENGTH
✓ Adjust by plus or minus 450mm increments (varies by model)
STOCKBOX
✓ Cattle or Deluxe version
✓ Slurry Box
✓ Inspection Doors
BALE CLAMPS
✓ 850mm, 1700mm, 2380mm or 3060mm Clamps
✓ Extra Light on Rear Bale Ladder
LIGHTS
✓ Extra Flashing Beacon
✓ On/Off Switch for Flashing Beacon
TOWING EYES
✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – (Cup) Ball
✓ Scharmuller Hitch – Hitch Eye
GUARDS, BRAKES AND SUSPENSION
✓ Plastic Mudguards with Flaps
✓ Metal Mudguards with Flaps
✓ Mudflaps Fron & Rear of Wheels
✓ Steering Commercial Axle
✓ Front Rubber Mudflaps
✓ Sprung Drawbar
✓ Air Brakes with Load Sensing (12 tonne)
✓ Auto Slack Adjusters
✓ ABS Brakes with Air Brakes and Load Sensing (12 tonne)
✓ ABS Brakes (16-20 tonne models)
✓ Hydraulic Brake Load Sensing (14-20 tonne models)
✓ Air Suspension (16-20 tonne models)
MISCELLANEOUS
✓ Additional Toolbox
✓ Fold Up Trailer Skid (Shoe)
✓ Greasing Bank – Suspension and Axles
✓ Hinged Rear Draw Bar – Hydraulic to Rear
✓ Hinged Rear Draw Bar – Hydraulic and Air to Rear
✓ High Visibility Safety Strips
✓ Jack – Screw
✓ Jack – Hydraulic
✓ Jack – Hydraulic with Hand Pump
✓ Wooden Nudge Bar
✓ Storage Rack
✓ Turntable Model
✓ Hydraulic Working Platform
✓ Box Pusher
✓ Hydraulic Tilting Drawbar
✓ Rollover Sheet
✓ Adjustable Rear Ladder (900mm)
✓ Bale Ladders (900mm)
✓ Bale Ladders (1500mm)
✓ Bale Ladders (Leant Back)
✓ Bale Extension with Rear Lights (900mm)
✓ Bale Extension with Rear Lights (1200mm)
✓ Wooden Floor
✓ Side Posts and Rails
✓ Side Posts and Straps
✓ Bolsters
✓ Bolster or Single Post Sockets
✓ Bespoke Colour

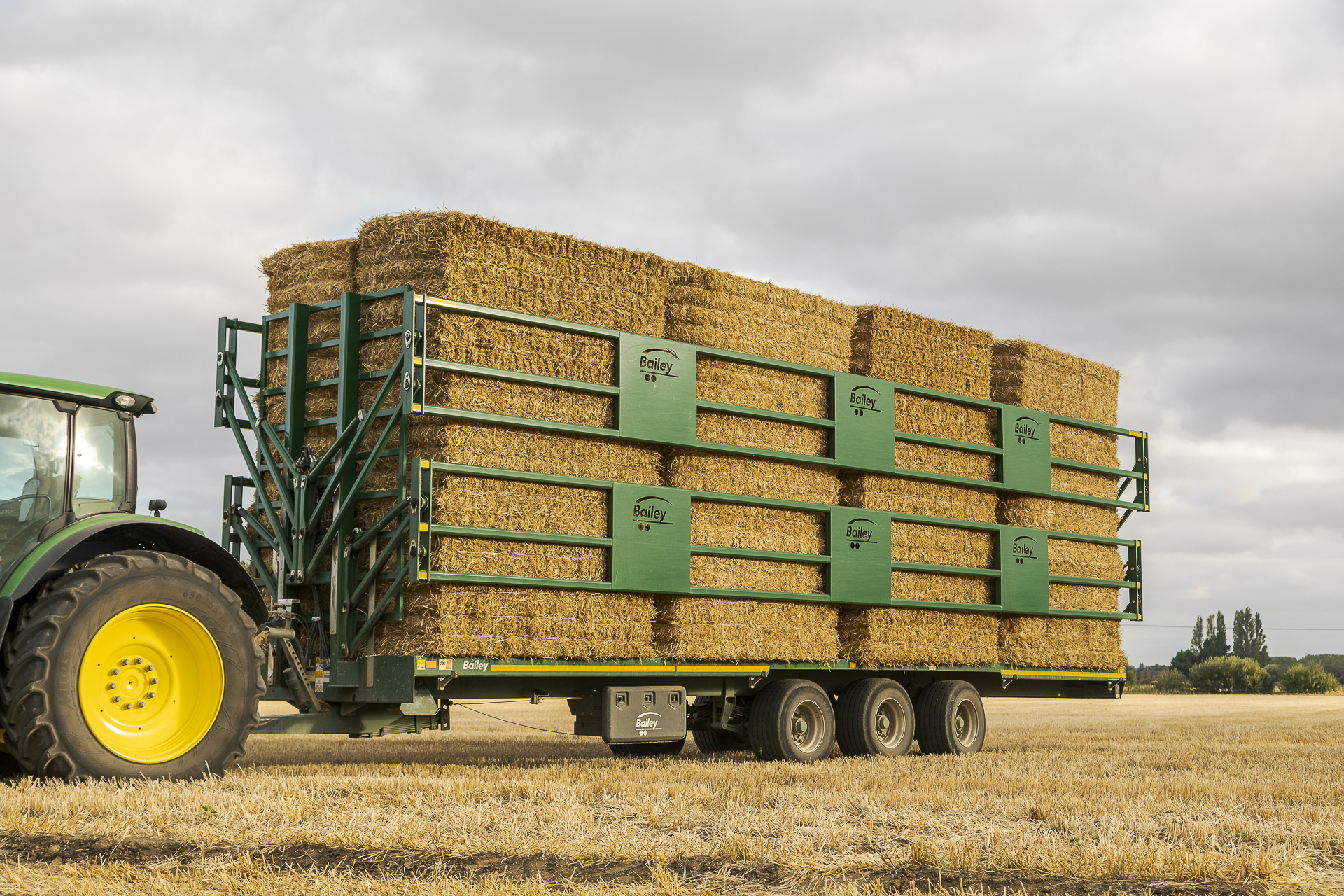

HYDRAULIC BALE CLAMPS
LESS TIME AND MORE SECURE
Our Hydraulic Bale Clamps provide the perfect solution for moving high volumes easily, quickly and safely. Loading couldn’t be simpler; we’ve designed each side to lower below the height of the trailer bed. Additionally, because both sides are powered independently you can select either nearside or offside loading to fit your needs.
The simple press of a button raises the clamps and the load is totally secured. From start to finish loading is a matter of seconds and you’re ready for safe transit across field and road.
Please note that when operating the trailer bales must be stacked neatly, the function of the clamps is not for correcting poorly stacked loads.
TWIN BALE CLAMPS
You can now load bales to a height of three Hesston’s with our new Twin Bale Clamps. This latest innovation provides contractors and large-scale farm businesses the ability to further reduce the number of loads, saving valuable time and fuel.

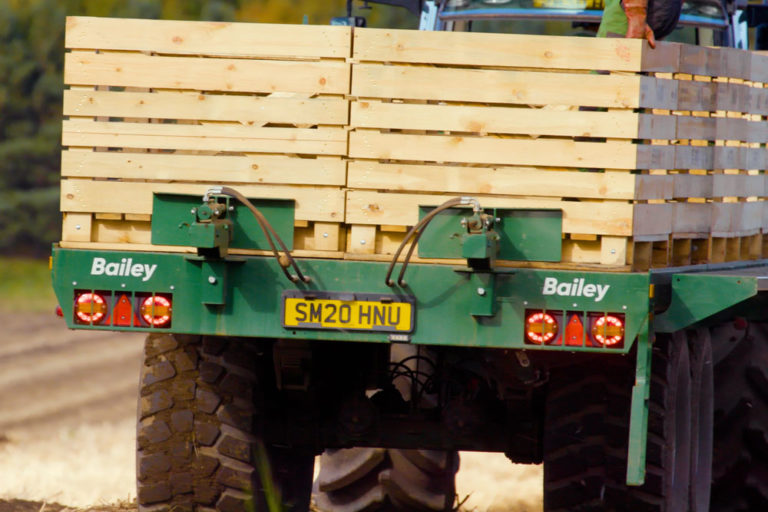

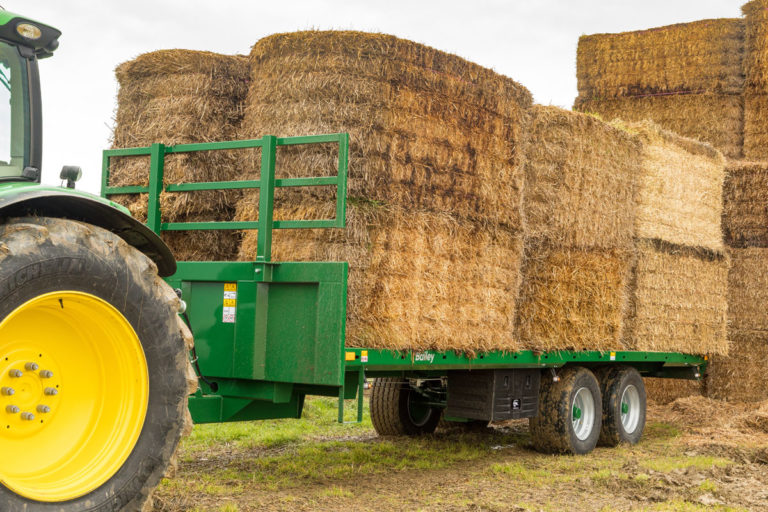

CLICK ON ANY IMAGE TO SEE A LARGER VERSION

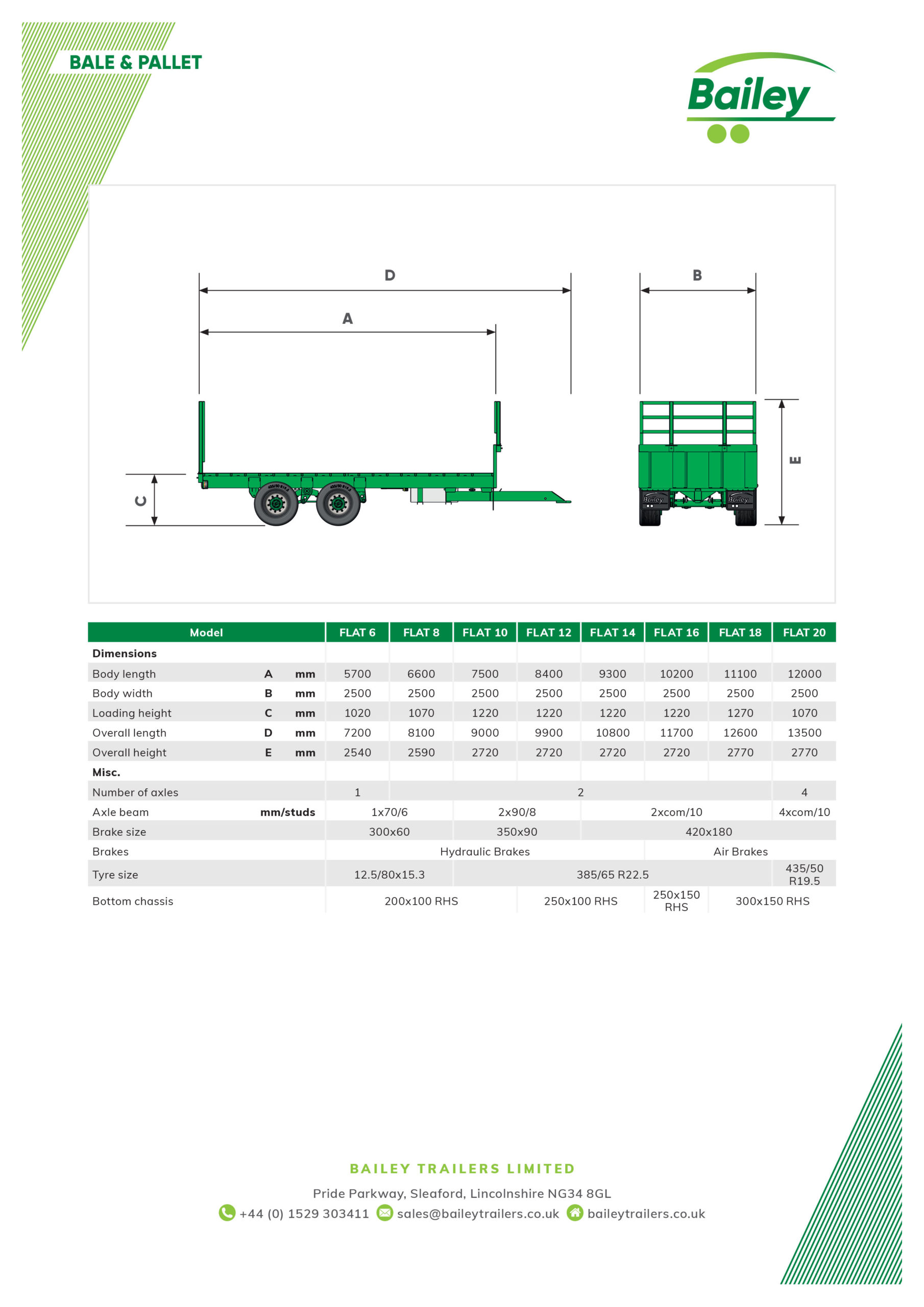

BALE & PALLET TRAILER SPEC SHEET PDF
Download your Bale & Pallet trailer range specification sheet (featuring full CD drawings and additional technical information) as a PDF for easy offline viewing.
Looking for our main brochure of maintenance manuals? Visit the Operators Hub here ››

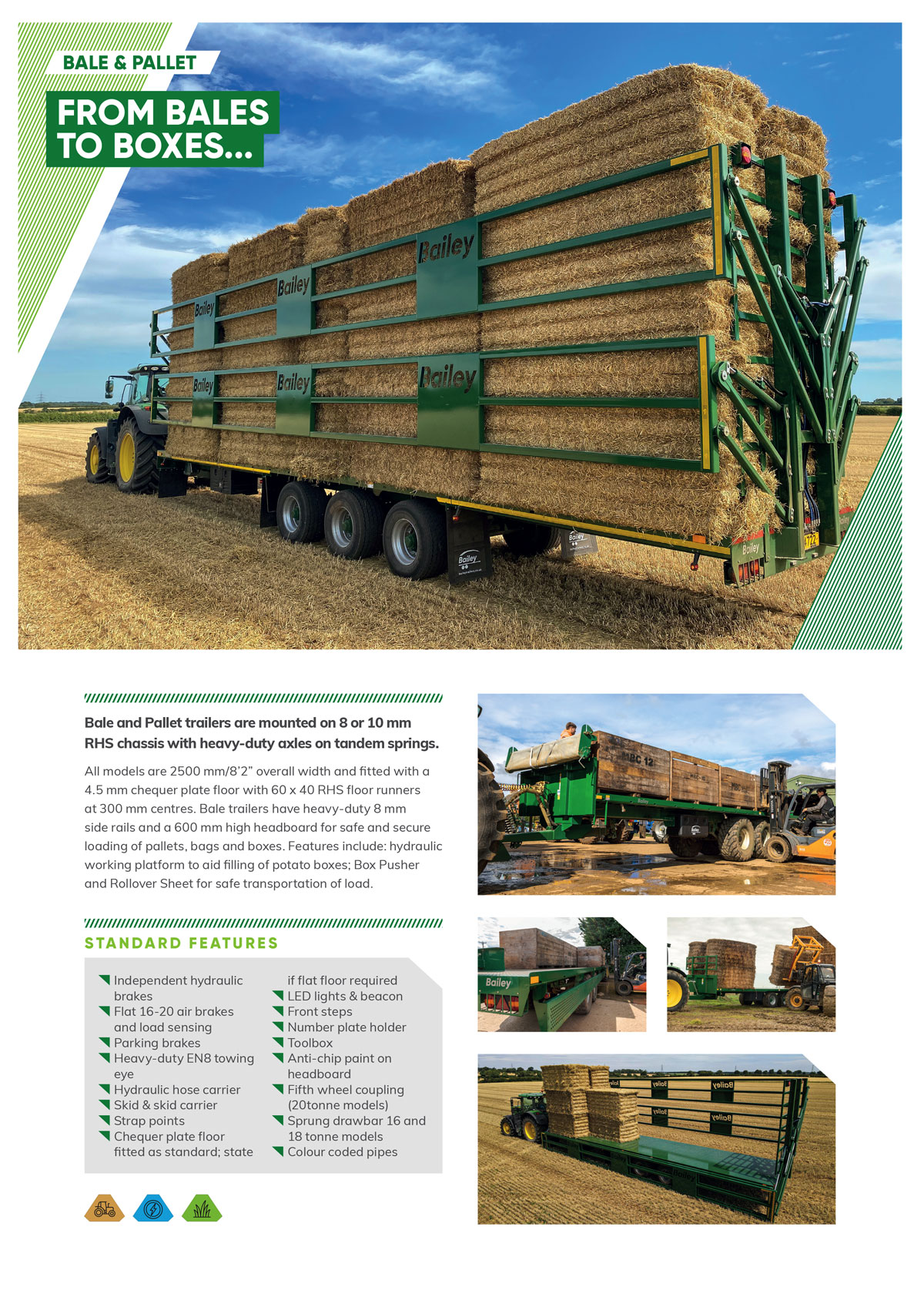

Click image to download PDF
