IF BEET IS YOUR BUSINESS…

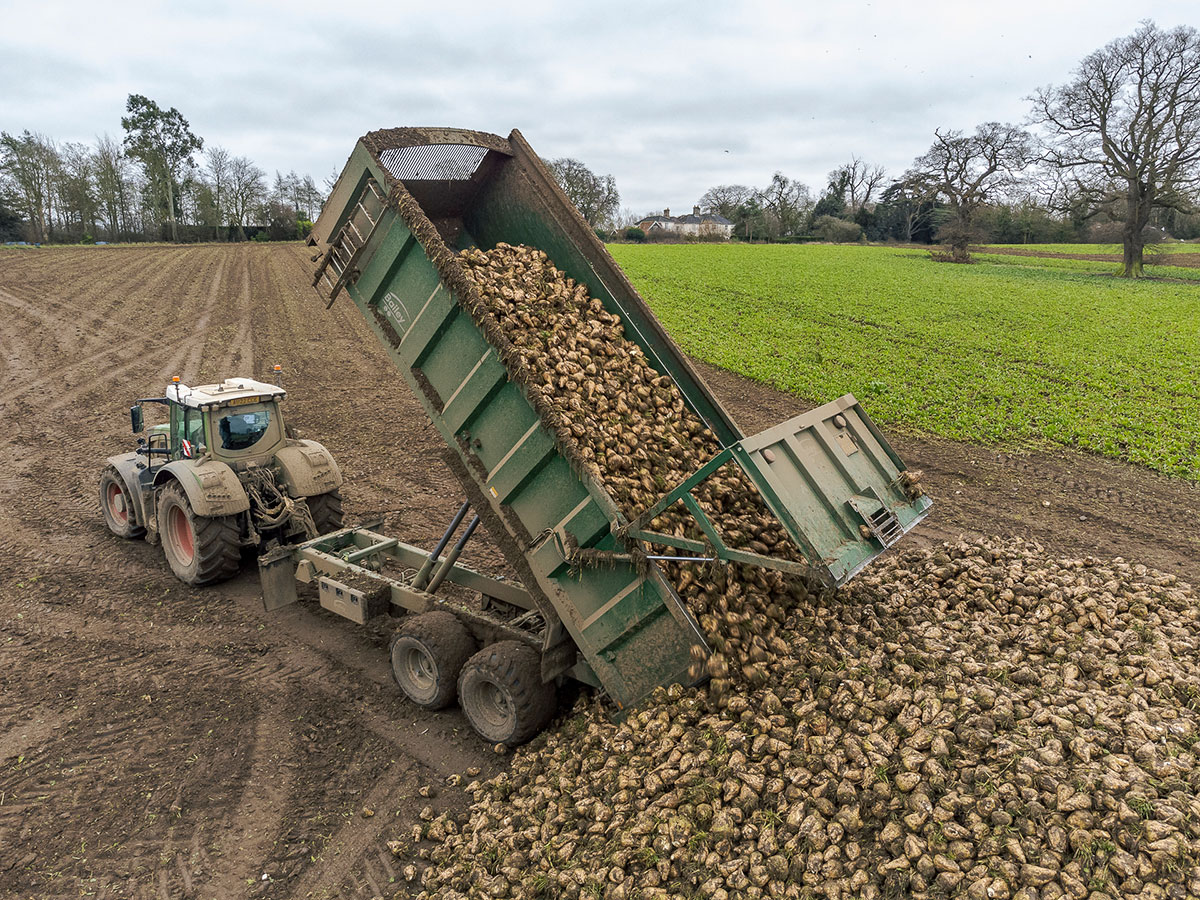

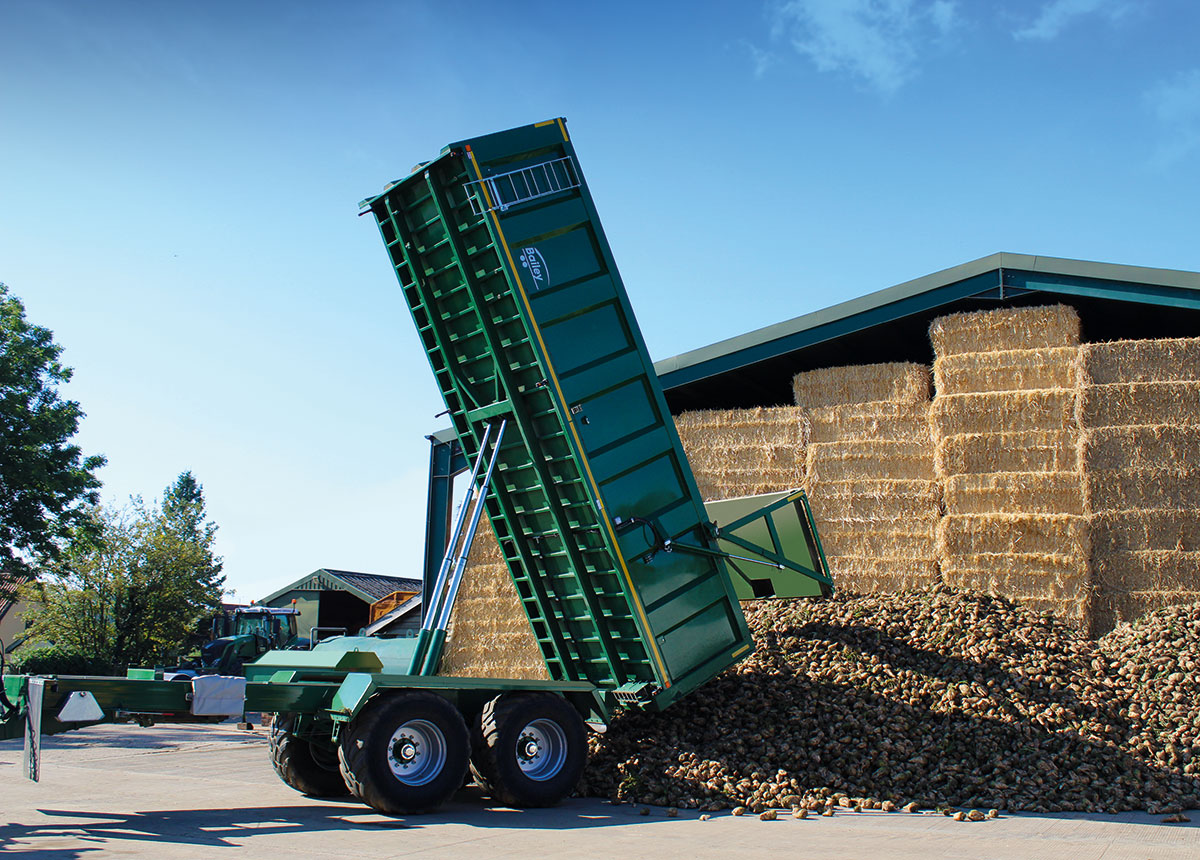

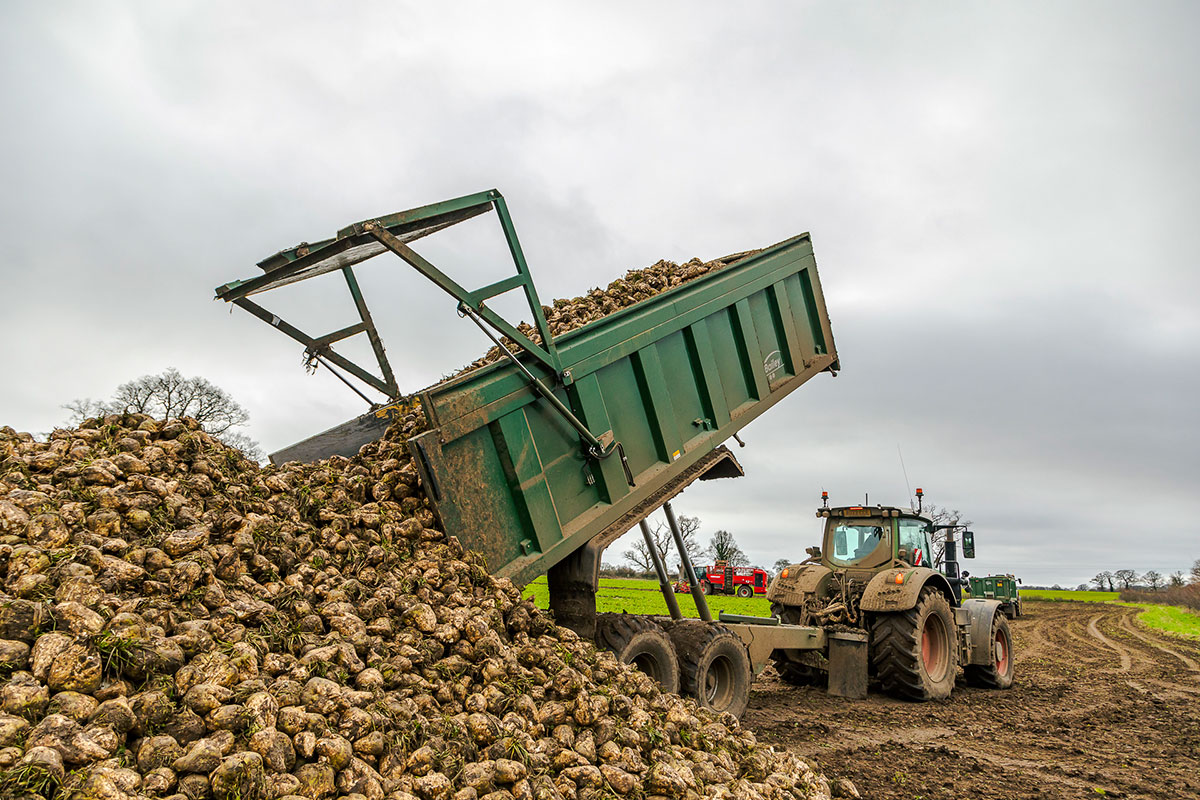

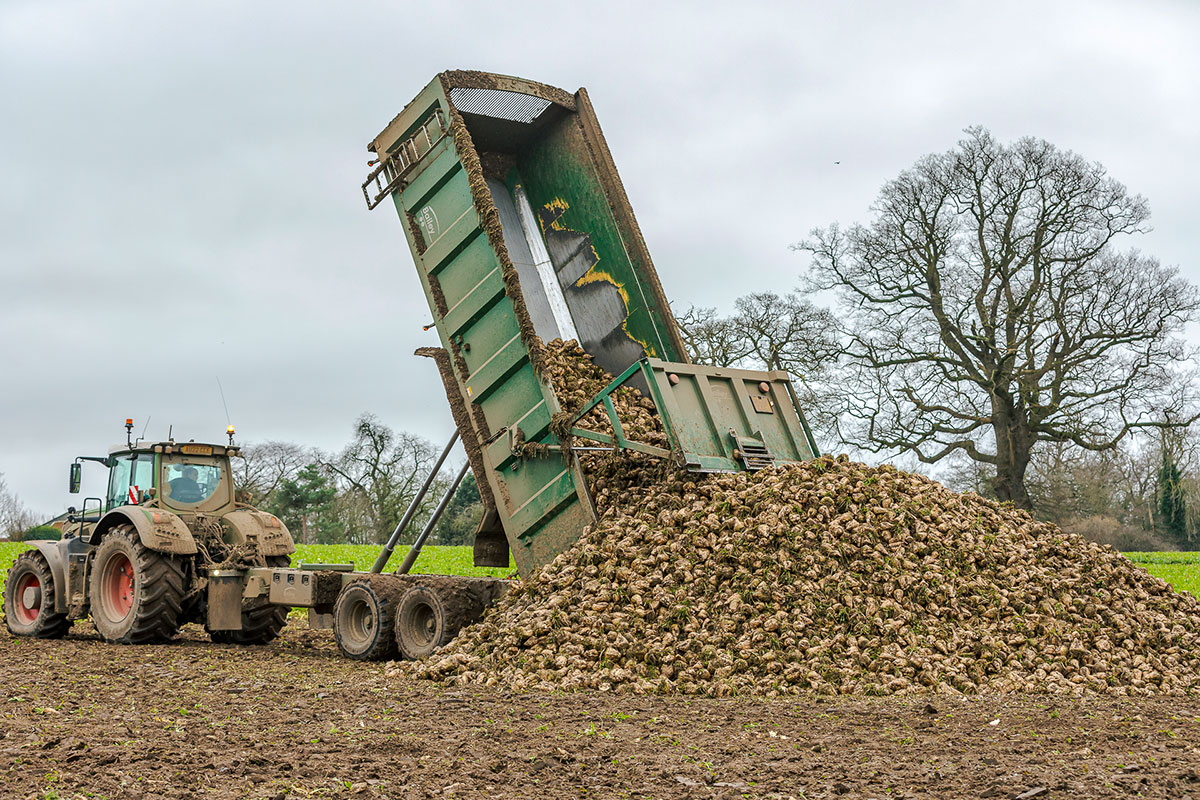

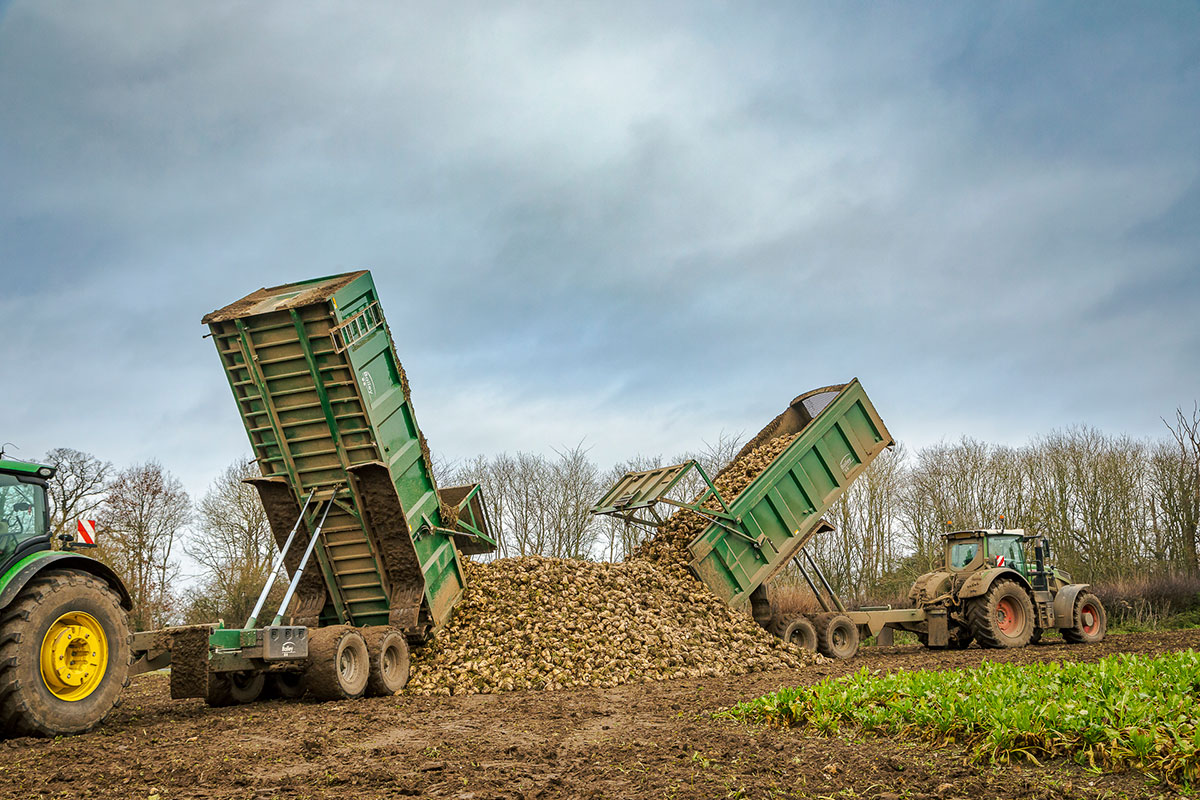

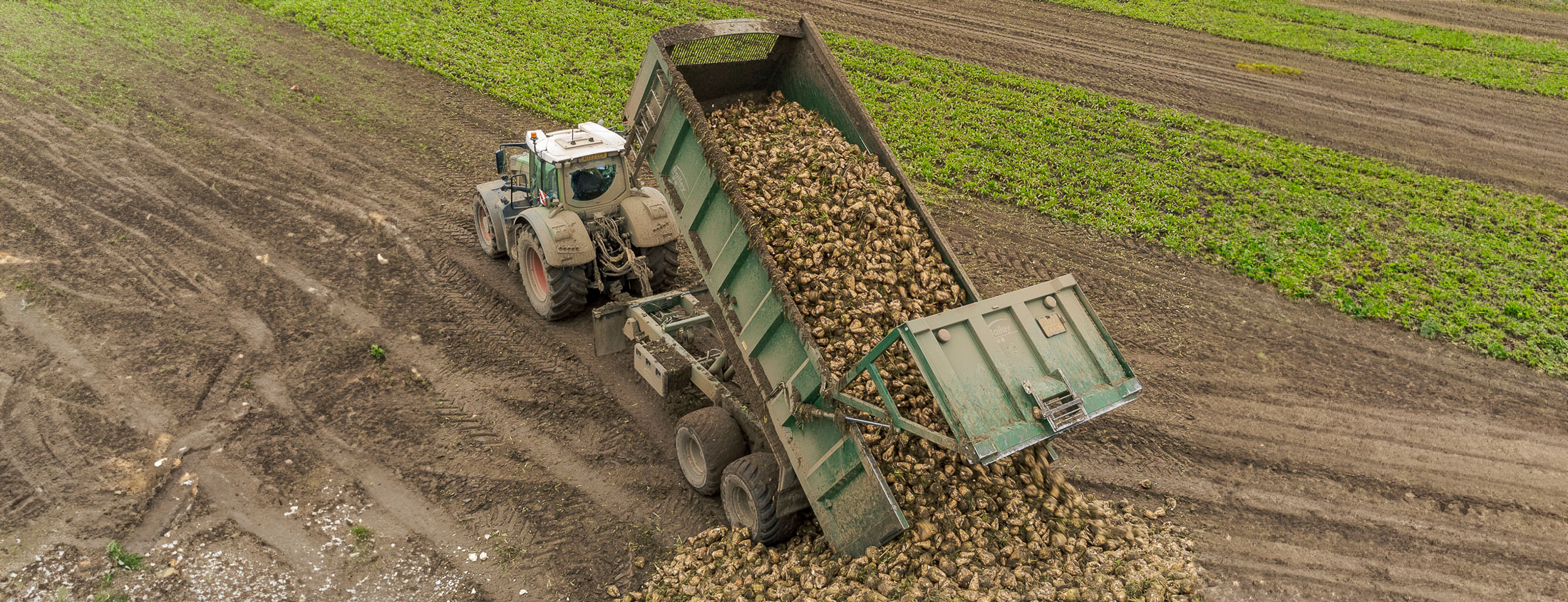

You won’t beat our Beeteaper trailers. This range is designed especially for transporting and heaping beet and features a unique tipping angle of approximately 60°. We fit longer side arms and rams, which enables the rear door to open higher when compared to conventional trailers. This extra clearance permits the heaping, scraping and levelling of beet to a height of around 9’.
An RHS chassis of either 8 or 10 mm provides the strength. This clean design eliminates material spillage on road or yard. The hydraulic braking system works in tandem with your tractor, which is important when braking suddenly. To offset the wear and tear of loading heavy materials, our trailers feature heavy-gauge sides, strengthening channels and heavy-gauge floors with hollow section runners at 300 mm centres. We fit rugged side ladders to aid stability for operators when working above the trailer height.
All Beeteaper’s are fitted with 10 stud heavy-duty commercial axles on tandem springs with air brakes as standard. Additionally, a sprung drawbar featuring a leaf spring ensures the ride is smooth on all terrains whether partially or fully loaded. Mudguards fitted as standard to protect the trailer against debris and surface spray. All models feature an arched window for improved visibility when loading.
Although our Beeteaper range is designed primarily for beet, it is just as dependable when transporting grain and other crops.
ENQUIRE NOW
Ready to configure your Beeteaper trailer?
Find your preferred Bailey Trailers distributor using the dropdowns below – first choose your region, then select your dealer, and finally click ‘View Details’.
STANDARD FEATURES
✓ Air brakes and load sensing
✓ Sprung drawbar
✓ Independent hydraulic brakes
✓ Hydraulic rear door
✓ Heavy-duty EN8 towing eye
✓ Parking brakes
✓ Tandem springs
✓ 3 leaf 100mm wide 32 tonne suspension
✓ Mudguards & flaps
✓ Flotation tyres
✓ Arched full front window
✓ Extra top lights on tail door
✓ Skid & skid carrier
✓ LED lights
✓ LED beacon
✓ Side ladders
✓ Chromed rams
✓ Number plate holder
✓ Body prop
✓ Commercial axles
✓ Anti-chip paint on headboard
SIZES / DIMENSIONS / TYRES
Model |
Capacity m3 |
LxWxH mm |
Loading height mm |
Tyres |
Beet 16 |
22.0 |
6000x2500x1525 |
2970 |
560/60 R22.5 |
Beet 18 |
24.1 |
6600x2500x1525 |
2970 |
560/60 R22.5 |
Beet 20 |
26.1 |
7200x2500x1525 |
2970 |
650/60 R22.5 |
Beet 22 - Triaxle |
28.5 |
7800x2500x1525 |
2970 |
560/60 R22.5 |
WINDOWS
✓ Extra high arched (Gypsy caravan)
✓ Extra deep arched (1000 deep)
SILAGE KIT
✓ 900mm / 750mm / 600mm
✓ 300mm Sidecatcher (Blowboard)
✓ Quick Release Silage with Straps
SHEETING
✓ Rollover sheet
✓ Hydraulic Side to Side
✓ Hydraulic Front to Back
✓ Front working platform
DOORS
✓ Potato Chute
✓ Grain chute with handle
✓ Grain sock
✓ Grain sampler
SIDES AND FLOORS
✓ Extra depth (75mm stages)
✓ Extra thick floor
✓ Extra thick sides
✓ Hydraulic Sides
LIGHTS
✓ Extra Flashing Beacon
✓ On/Off Switch for Flashing Beacon
✓ Reversing Lights & Mudflaps
✓ Internal Light
✓ Extra Rear Lights
✓ High Visibility Safety Strips
TOWING EYES
✓ Rear Towing Eye
✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – Cup Ball
✓ Scharmuller Hitch – Hitch Eye
GUARDS, BRAKES AND SUSPENSION
✓ Upgrade to Metal Mudguards
✓ Steering Commercial Axle
✓ Front Rubber Mudflaps
✓ Auto Slack Adjusters
✓ ABS Brakes with Air Brakes and Load Sensing
✓ Hydraulic Brake Load Sensing
✓ Axle Upgrade (420×180 to 420×220)
MISCELLANEOUS
✓ Fold Up Trailer Skid (Shoe)
✓ Greasing Bank – Suspension and Axles
✓ Greasing Bank – Hydraulic Door
✓ Hinged Rear Draw Bar (Hydraulic to Rear)
✓ Hinged Rear Draw Bar (Hydraulic and Air to Rear)
✓ Jack – Screw
✓ Jack – Hydraulic
✓ Jack – Hydraulic w/Hand Pump
✓ Reversing Camera
✓ Storage Rack
✓ Twin Tipping Pipes
✓ Toolbox
✓ Electric / Hydraulic Weighing System
✓ Load Cell Weighing System
✓ Wooden Nudge Bar
✓ Wheel Nut Indicators
✓ Single Hydraulic Tipping Ram
✓ Bespoke Colour
CLICK ON ANY IMAGE TO SEE A LARGER VERSION

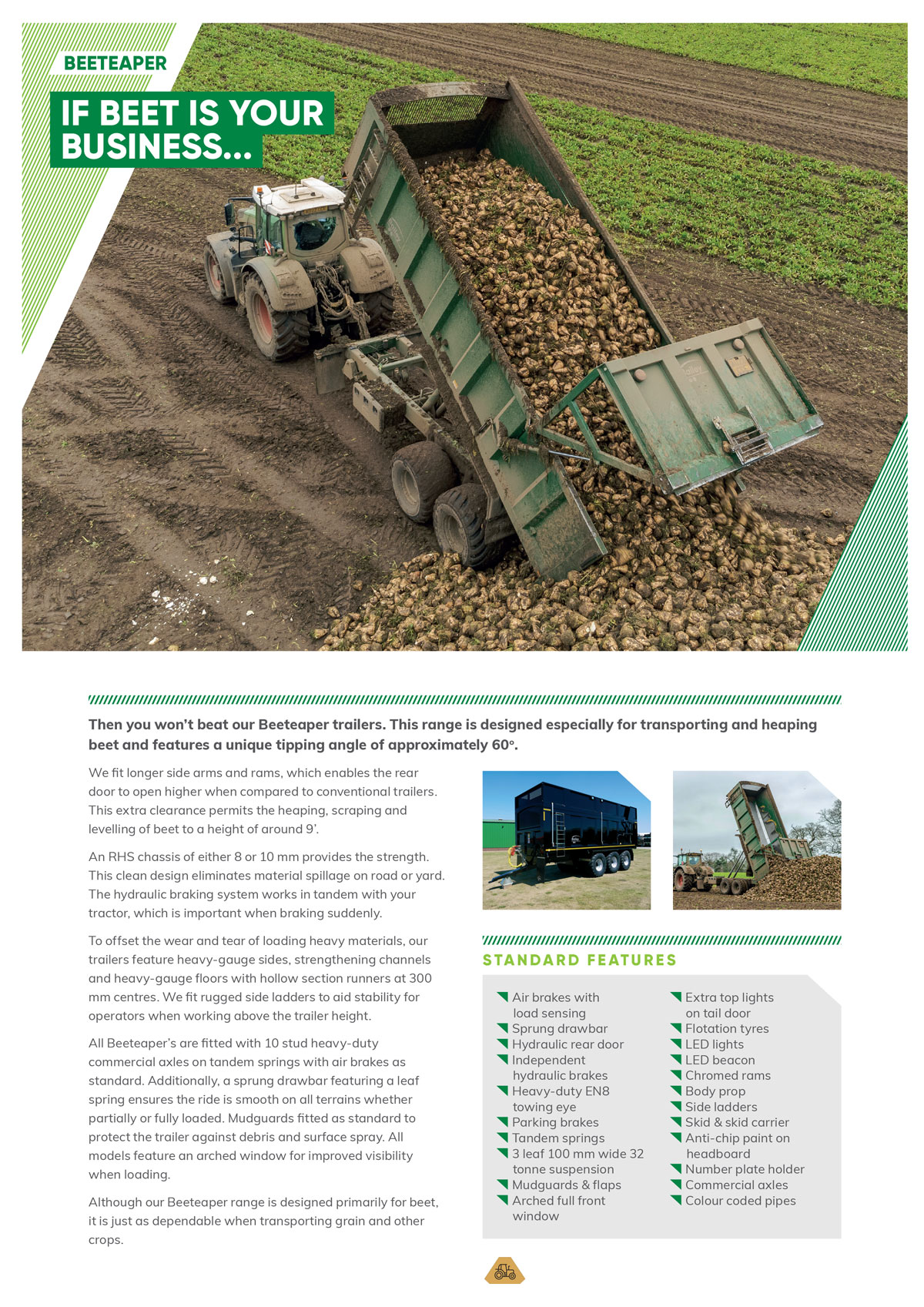

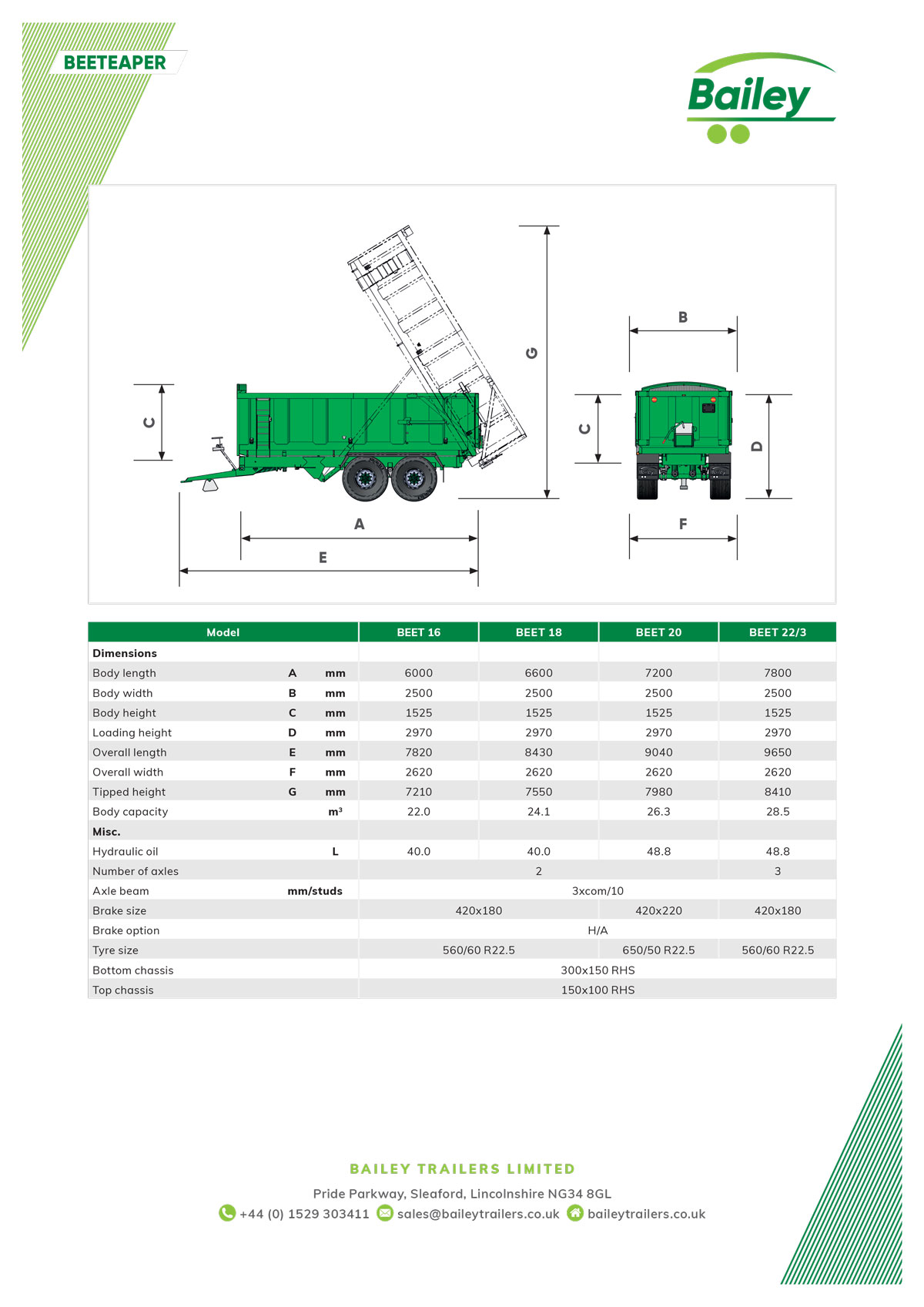

BEETEAPER SPEC SHEET PDF
Download your Beeteaper trailer range specification sheet (featuring full CD drawings and additional technical information) as a PDF for easy offline viewing.
