WHEN YOU NEED TO DISCHARGE LOADS INTO ELEVATED BULKERS…
The 14 tonne High Lift trailer features a sprung drawbar and commercial axles mounted on heavy-duty tandem springs.

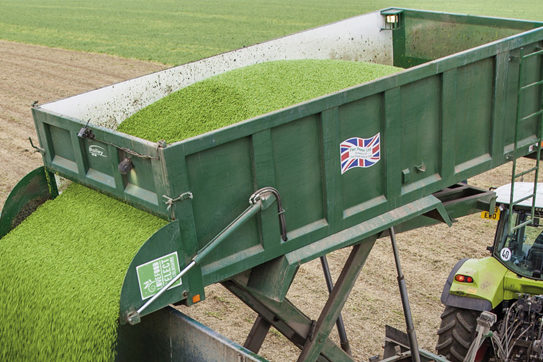

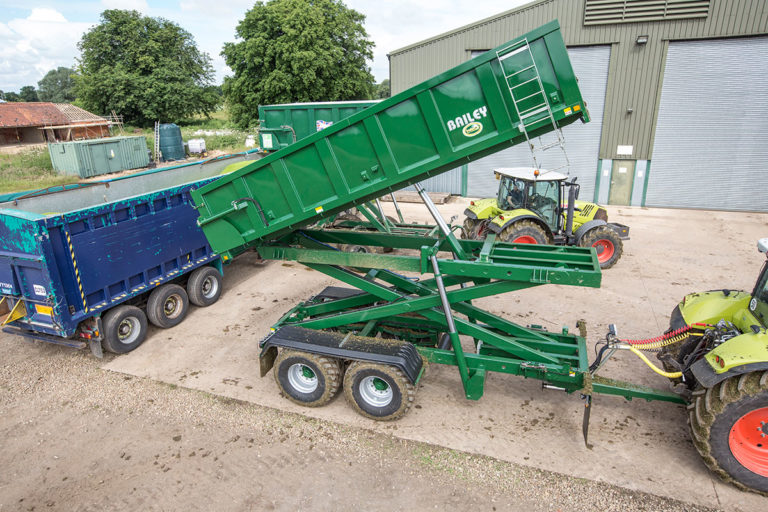

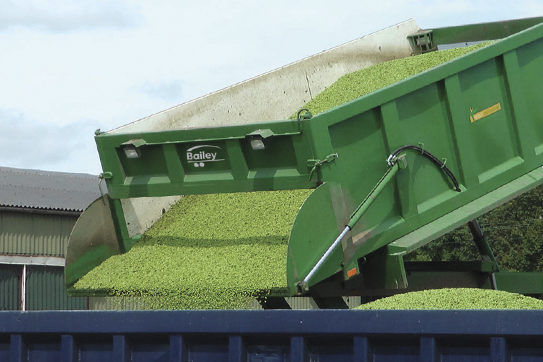

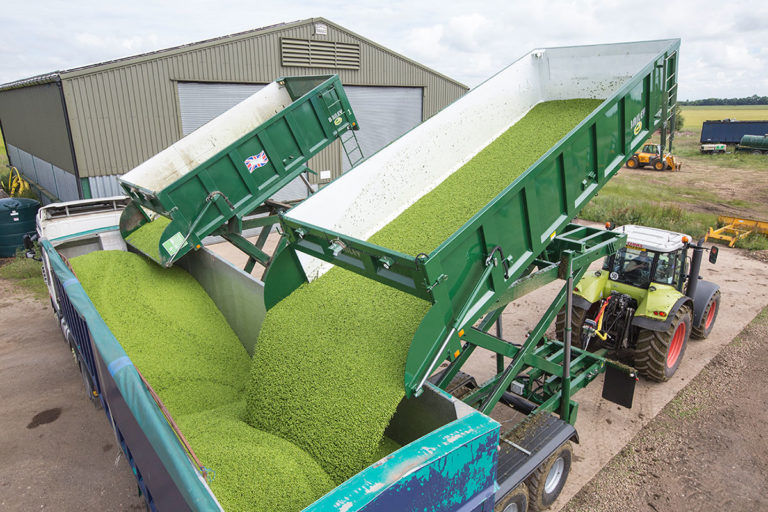

The main function of High Lift is discharging loads into elevated bulkers giving a clearance under the tail door of 4.75 metres.
A hydraulic door is fitted as standard with a choice of door from our TB range or a non-spill pea door. Standard on 385/65 R22.5 wheels, air brakes and load sensing, 6 metres long, 2500mm wide and body of 1225mm deep. Body prop, anti-chip paint paint on headboard, extra top lights.
ENQUIRE NOW
Ready to configure your High Lift trailer?
Find your preferred Bailey Trailers distributor using the dropdowns below – first choose your region, then select your dealer, and finally click ‘View Details’.
STANDARD FEATURES
✓ Hydraulic door
✓ Commercial axle
✓ Sprung drawbar
✓ Plastic Mudguards with Flaps
✓ Air brakes with load sensing
✓ Extra top lights
✓ Body prop
✓ Anti-chip paint on headboard
SIZES / DIMENSIONS / TYRES
Model |
Capacity m3 | Length x height mm |
Loading height mm |
Tyres |
Axle(s) mm/stud |
14 tonne |
17.27 |
6000x1225 |
2770 |
385/65 R22.5 |
2xcom/10 |
WINDOWS
✓ Front window
✓ Full front window
✓ Arched front window
SHEETING
✓ Rollover sheet
✓ Hydraulic Side to Side
✓ Hydraulic Front to Back
✓ Front working platform
SIDES AND FLOORS
✓ Extra depth (75mm stages)
✓ Extra thick floor
✓ Extra thick sides
LIGHTS
✓ Extra Flashing Beacon
✓ On/Off Switch for Flashing Beacon
✓ Reversing Lights & Mudflaps
✓ Internal Light
✓ High Visibility Safety Strips
TOWING EYES
✓ Rear Towing Eye
✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – Cup Ball
✓ Scharmuller Hitch – Hitch Eye
GUARDS, BRAKES AND SUSPENSION
✓ Metal Mudguards with Flaps
✓ Front Rubber Mudflaps
✓ ABS Brakes
✓ Auto Slack Adjusters
✓ Hydraulic Brake Load Sensing
MISCELLANEOUS
✓ Fold Up Trailer Skid (Shoe)
✓ Greasing Bank – Suspension and Axles
✓ Greasing Bank – Hydraulic Door
✓ Hinged Rear Draw Bar (Hydraulic to Rear)
✓ Hinged Rear Draw Bar (Hydraulic and Air to Rear)
✓ Jack – Screw
✓ Jack – Hydraulic
✓ Jack – Hydraulic w/Hand Pump
✓ Reversing Camera
✓ Storage Rack (Bolt On)
✓ Twin Tipping Pipes
✓ Toolbox
✓ Electric / Hydraulic Weighing System
✓ Load Cell Weighing System
✓ Wooden Nudge Bar
✓ Wheel Nut Indicators
✓ Bespoke Colour
CLICK ON ANY IMAGE TO SEE A LARGER VERSION
HIGH LIFT SPEC SHEET PDF
Download your High Lift trailer range specification sheet (featuring full CD drawings and additional technical information) as a PDF for easy offline viewing.
