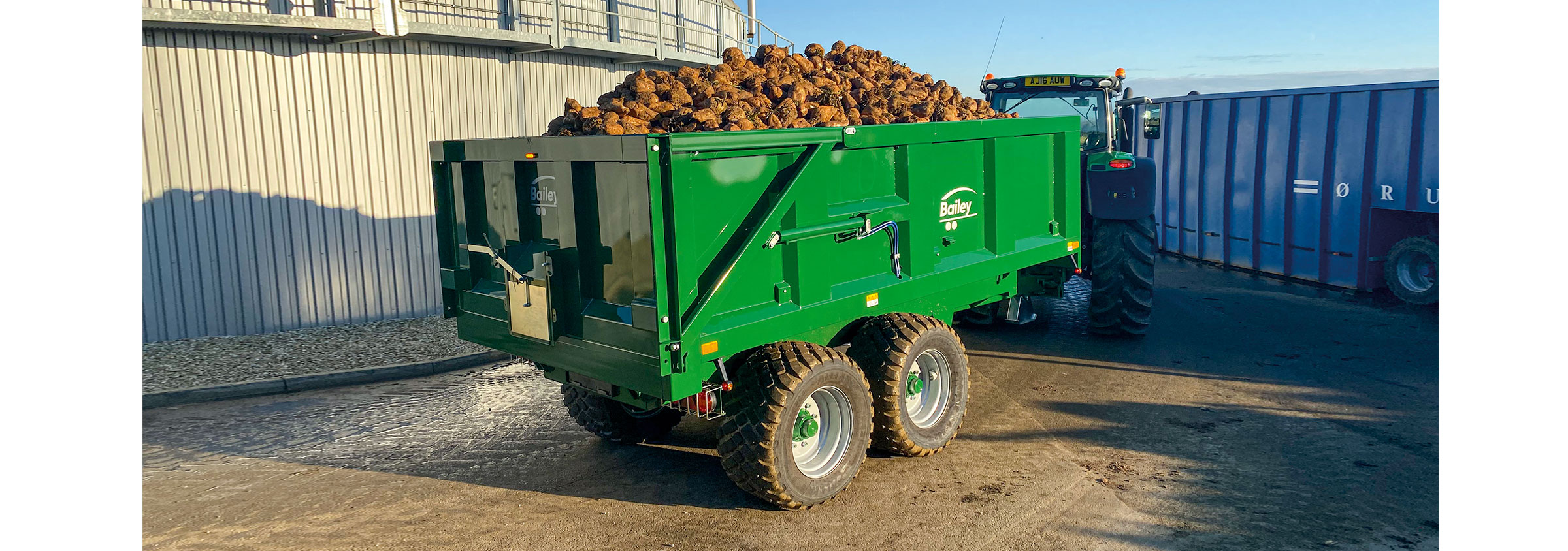

FOR SMALLER LOADS
Our 8-11 tonne TB trailers are designed for general-purpose haulage. They’re the ideal solution for farming, agriculture, horticulture or contracting businesses that require a compact, dependable workhorse for all those smaller loads.

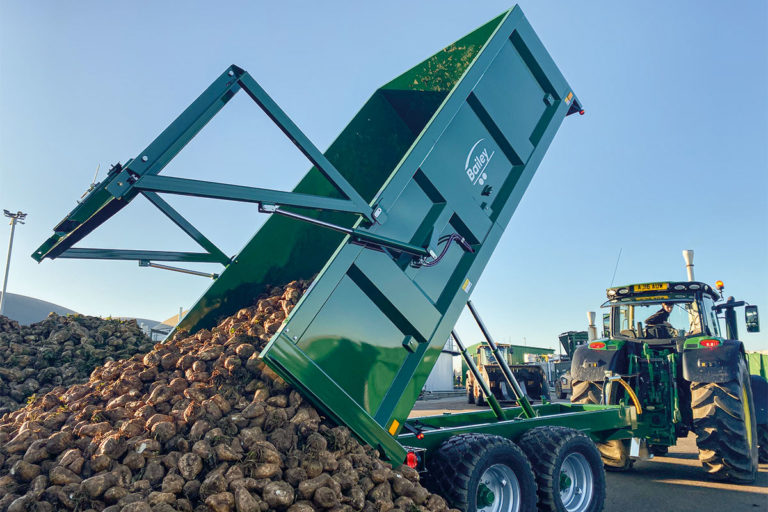

Built for tough conditions all models are mounted on 8mm RHS chassis, which we’ve designed to eliminate material spillage onto the road or yard. Protection against wear and tear is provided by heavy-gauge sides, strengthening channels and heavy-gauge floors with hollow section runners at 300mm centres which feature across the range. Long reach chromed tipping cylinders achieve approximately 50º of tip.
All TB 8-11 tonne trailers feature agricultural axles, fixed drawbar and swing door as standard.
ENQUIRE NOW
Ready to configure your TB8-11 trailer?
Find your preferred Bailey Trailers distributor using the dropdowns below – first choose your region, then select your dealer, and finally click ‘View Details’.
STANDARD FEATURES
✓ Hydraulic brakes, parking brakes
✓ Heavy-duty EN8 towing eye
✓ Skid & skid carrier
✓ Hydraulic hose carrier
✓ LED lights
✓ LED beacon
✓ Ladder
✓ Chromed rams
✓ Number plate holder
✓ Body prop
SIZES / DIMENSIONS / TYRES
Model |
Capacity m3 |
LxWxH mm |
Loading height mm |
Tyres |
Axle(s) mm/stud |
Sprung d/bar |
TB 8 |
10.7 |
3900x2350x1225 |
2360 |
12.5/80x15.3 |
2x70/6 |
n/a |
TB 9 |
11.9 |
4350x2350x1225 |
2360 |
435/50 R19.5 |
2x80/8 |
n/a |
TB 11 |
13.8 |
4800x2500x1225 |
2360 |
385/65 R22.5 |
2x80/8 |
Option |
WINDOWS
✓ Front window
✓ Full front window
✓ Arched front window
SHEETING
✓ Rollover sheet
✓ Hydraulic Side to Side
✓ Hydraulic Front to Back
✓ Front working platform
DOORS
✓ Hydraulic Door
✓ Barn Doors
✓ Potato Chute
✓ Grain chute with handle
✓ Grain sock
✓ Grain sampler
SIDES AND FLOORS
✓ Extra depth (75mm stages)
✓ Extra thick floor
✓ Extra thick sides
✓ Extension Sides
✓ Hydraulic Sides
LIGHTS
✓ Flashing Beacon
✓ On/Off Switch for Flashing Beacon
✓ Reversing Lights & Mudflaps
✓ Internal Light
✓ Extra Rear Lights
✓ High Visibility Safety Strips
TOWING EYES
✓ Rear Towing Eye
✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – Cup Ball
✓ Scharmuller Hitch – Hitch Eye
GUARDS, BRAKES AND SUSPENSION
✓ Plastic Mudguards with Flaps
✓ Metal Mudguards with Flaps
✓ Steering Commercial Axle
✓ Front Rubber Mudflaps
✓ Hydraulic Brake Load Sensing
✓ Sprung Drawbar
MISCELLANEOUS
✓ Fold Up Trailer Skid (Shoe)
✓ Hinged Rear Draw Bar (Hydraulic to Rear)
✓ Jack – Screw
✓ Jack – Hydraulic
✓ Jack – Hydraulic w/Hand Pump
✓ Reversing Camera
✓ Storage Rack
✓ Twin Tipping Pipes
✓ Toolbox
✓ Electric / Hydraulic Weighing System
✓ Load Cell Weighing System
✓ Wooden Nudge Bar
✓ Wheel Nut Indicators
✓ Bespoke Colour

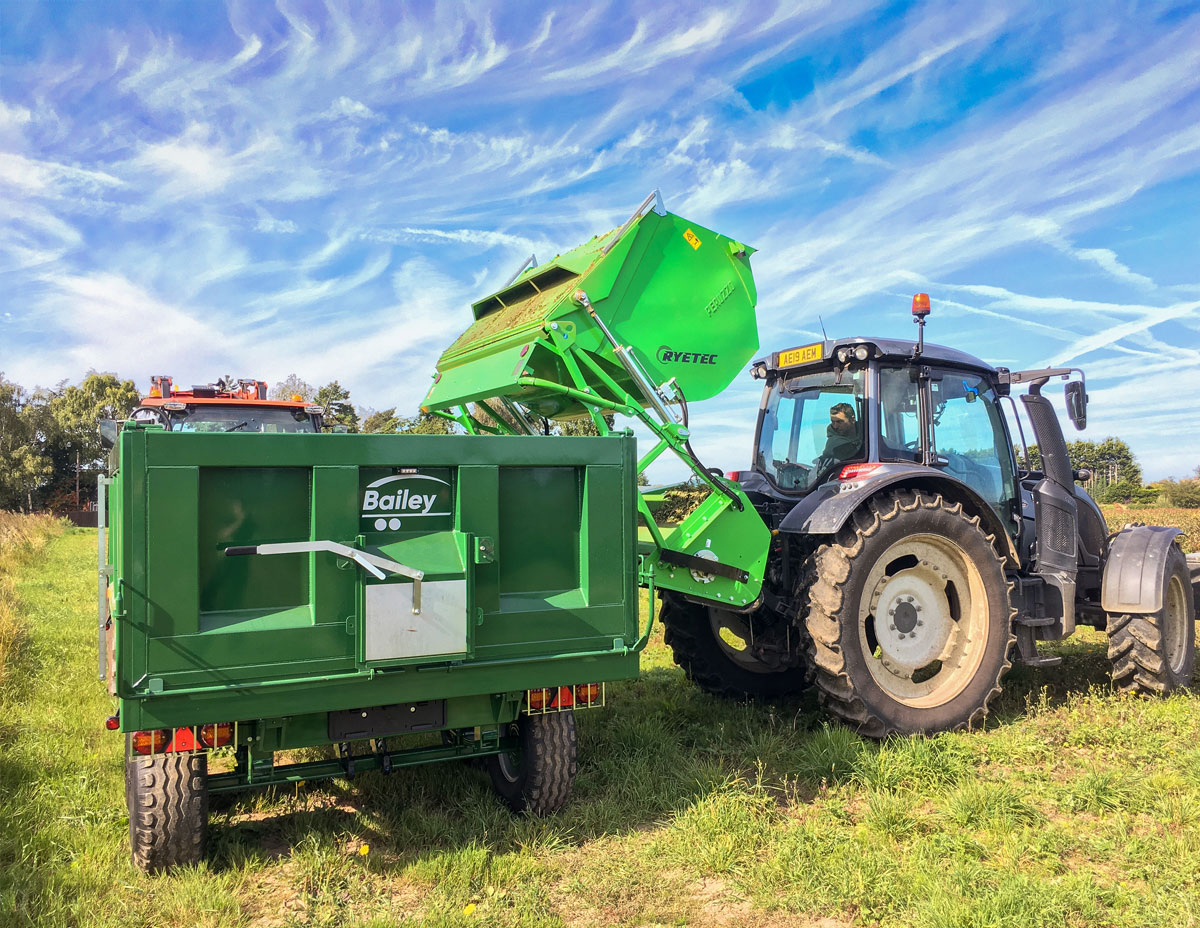

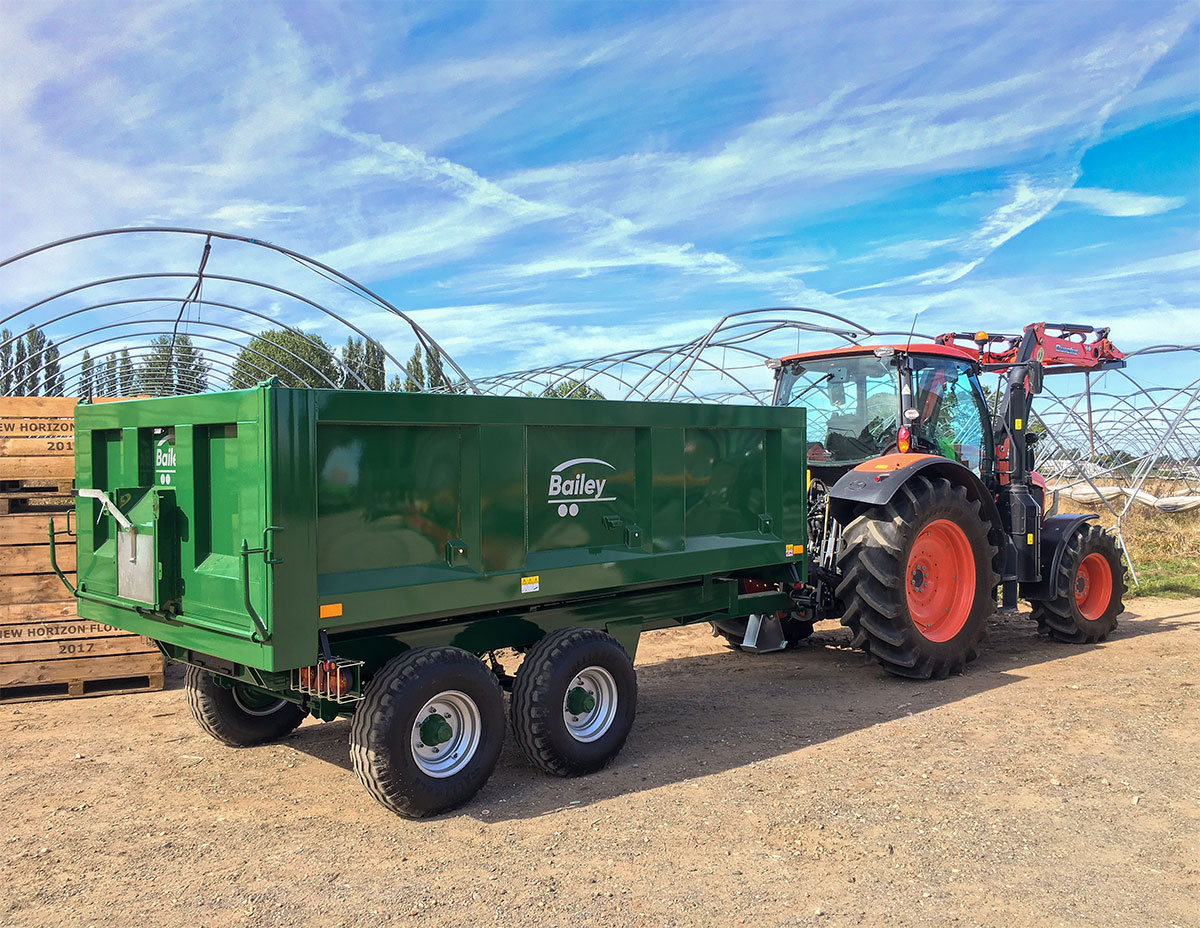

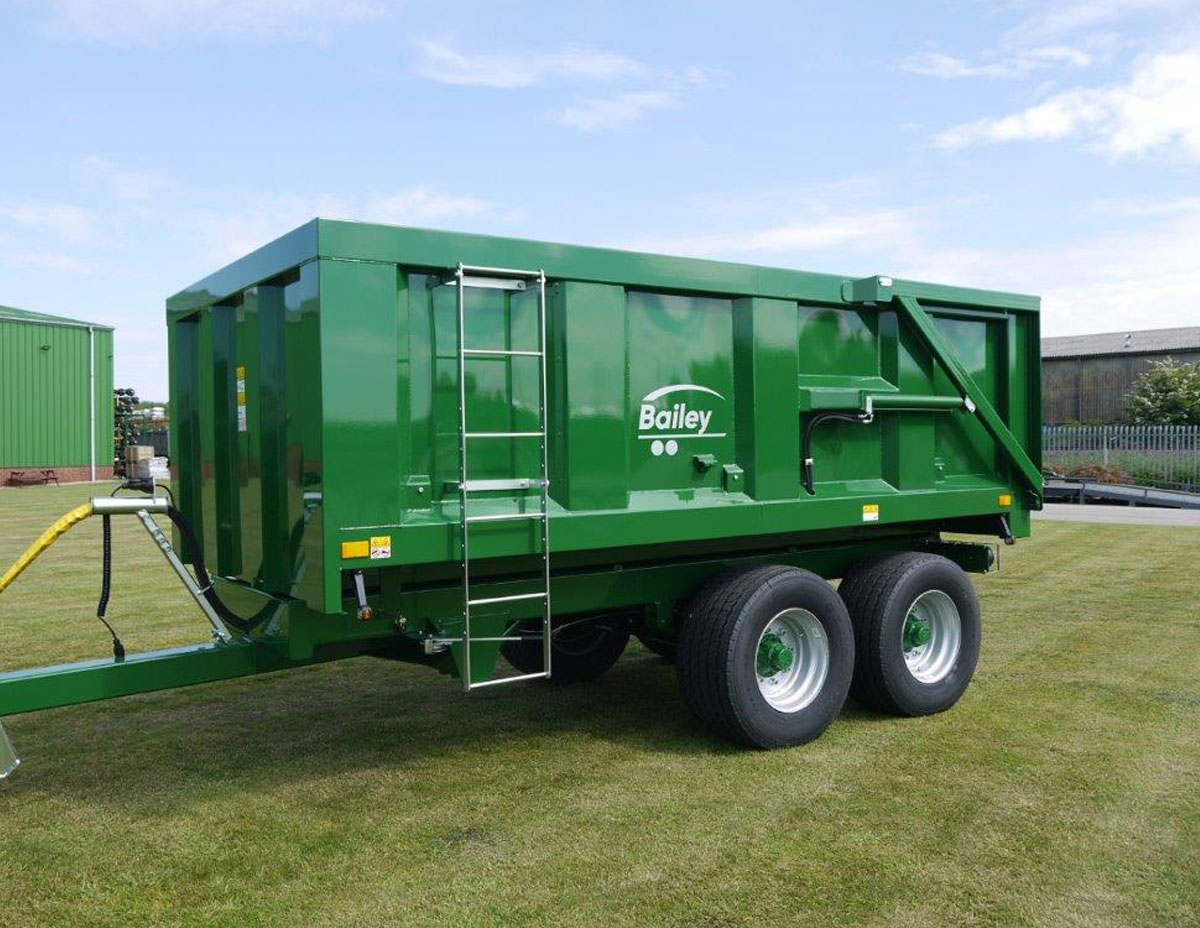

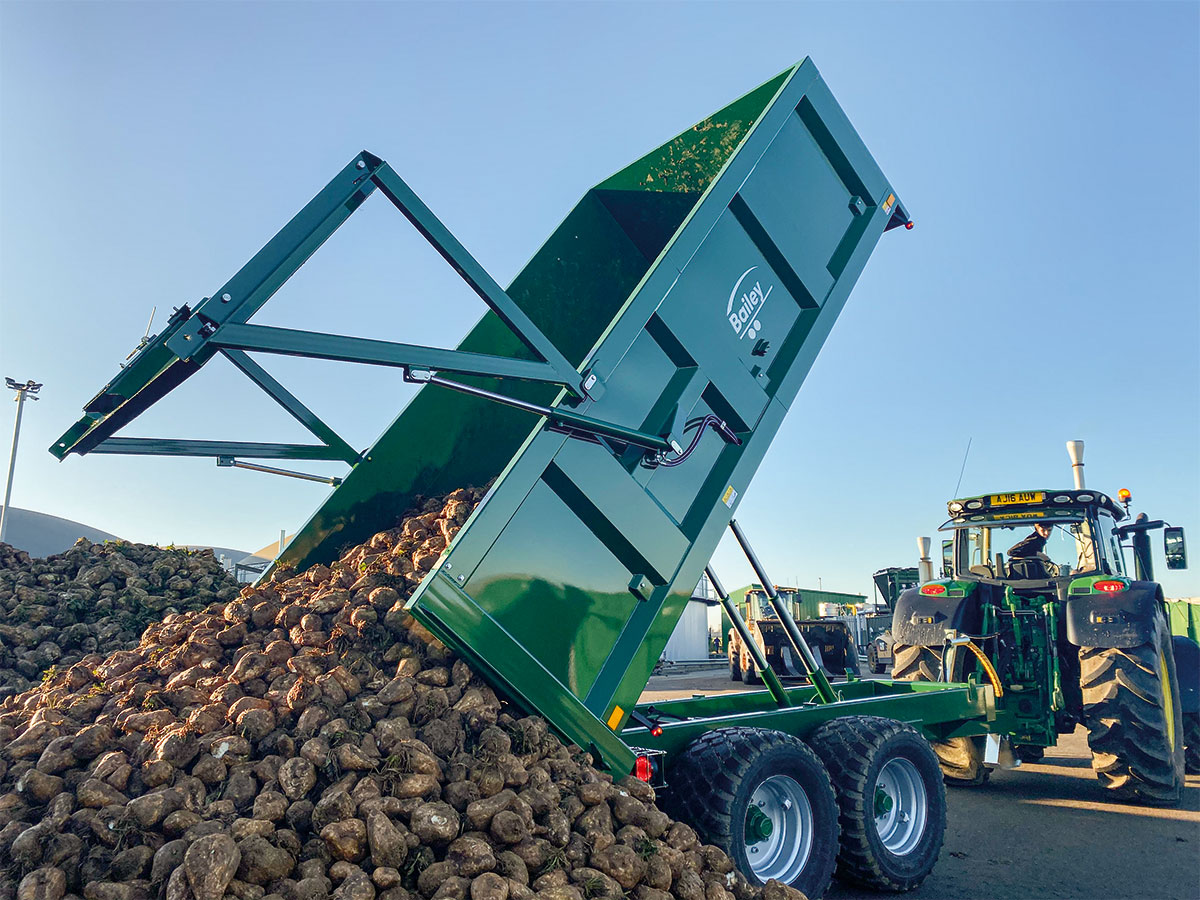

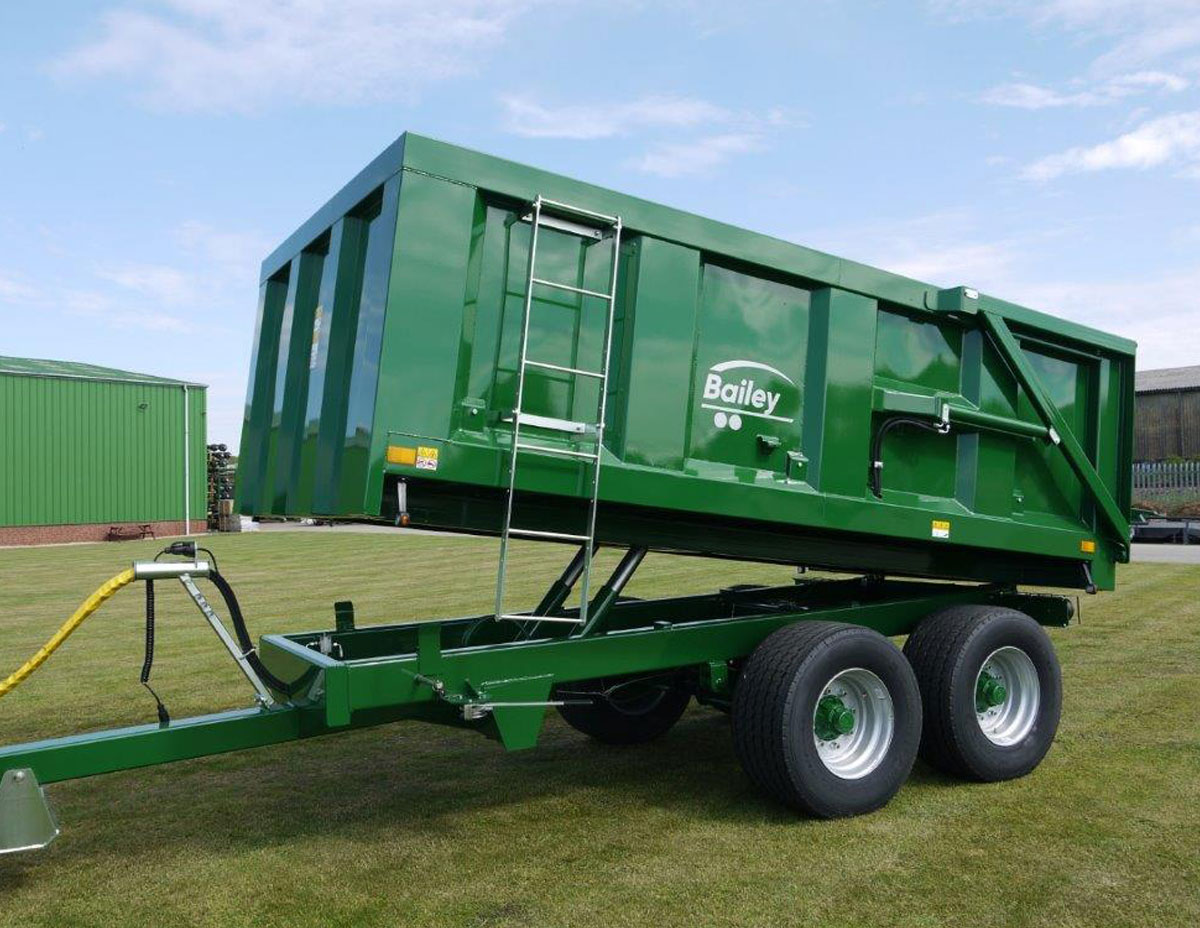

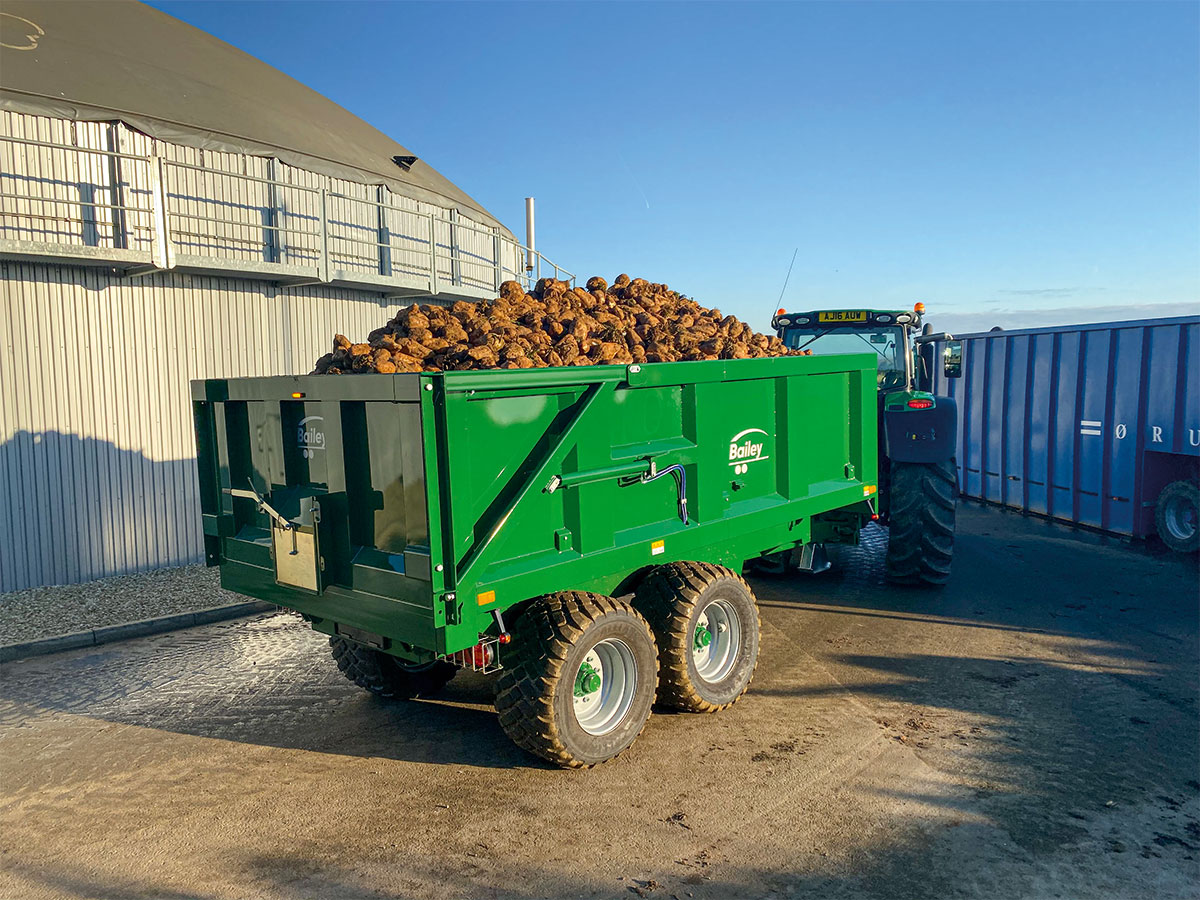

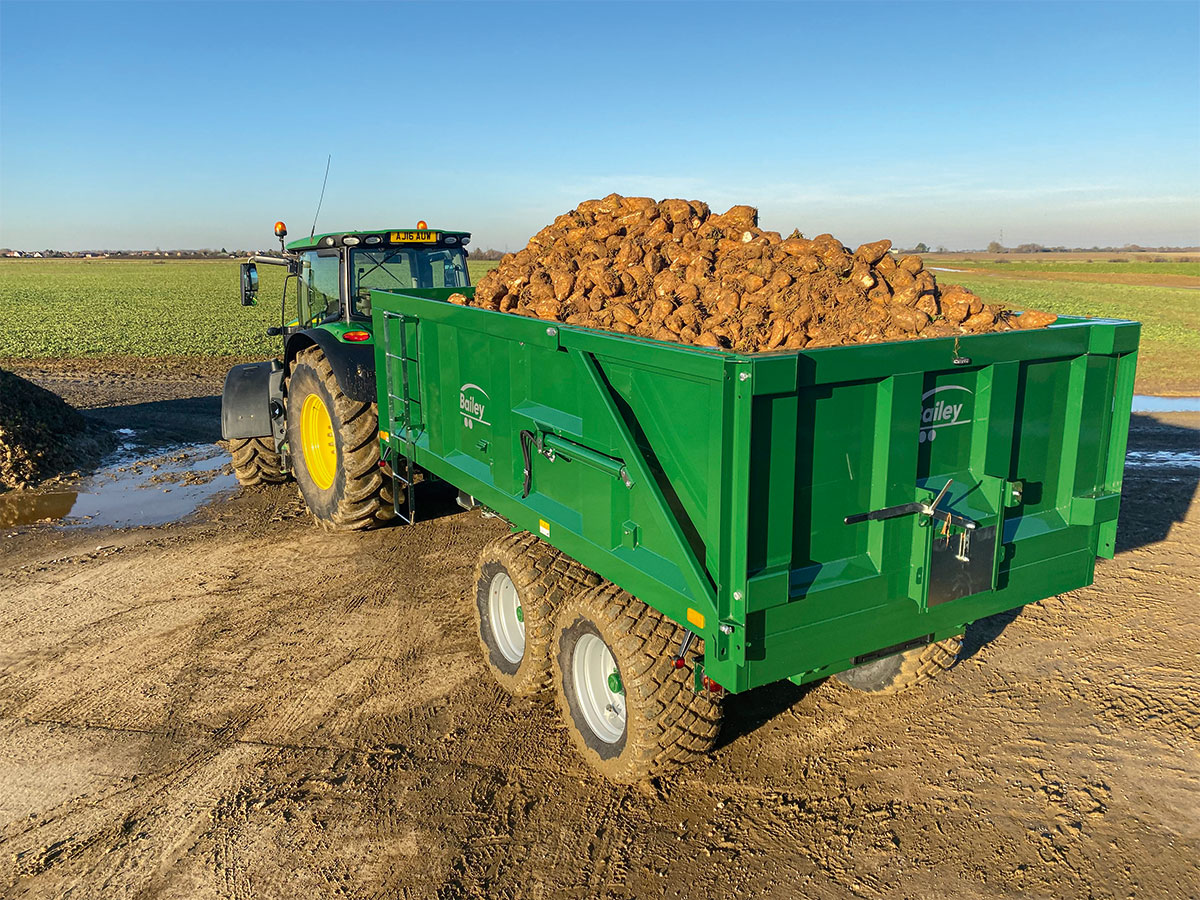

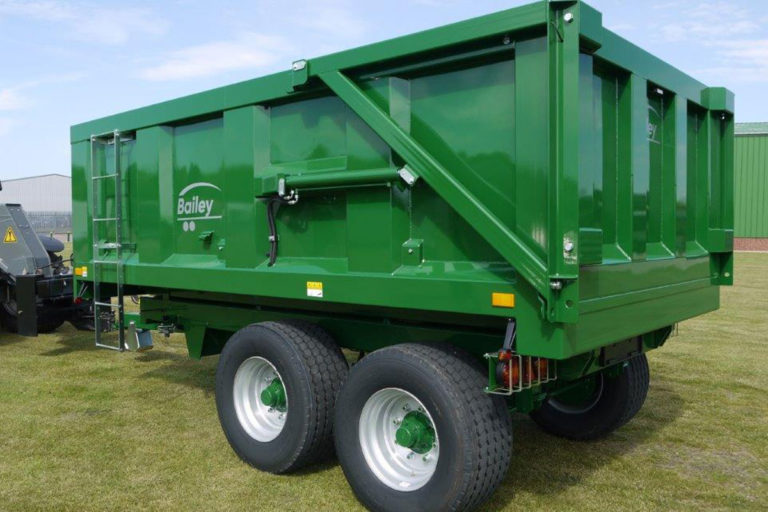

CLICK ON ANY IMAGE TO SEE A LARGER VERSION

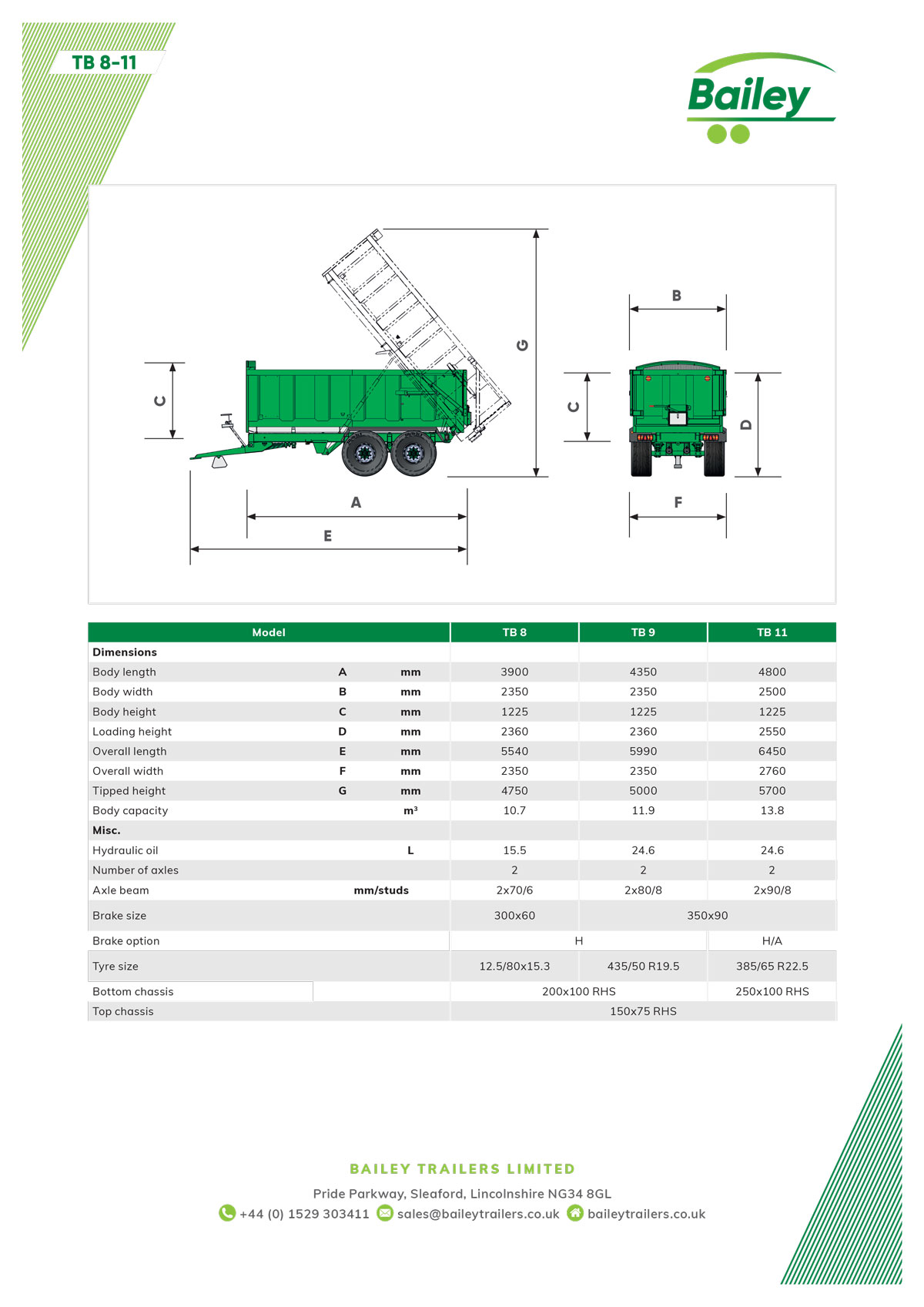

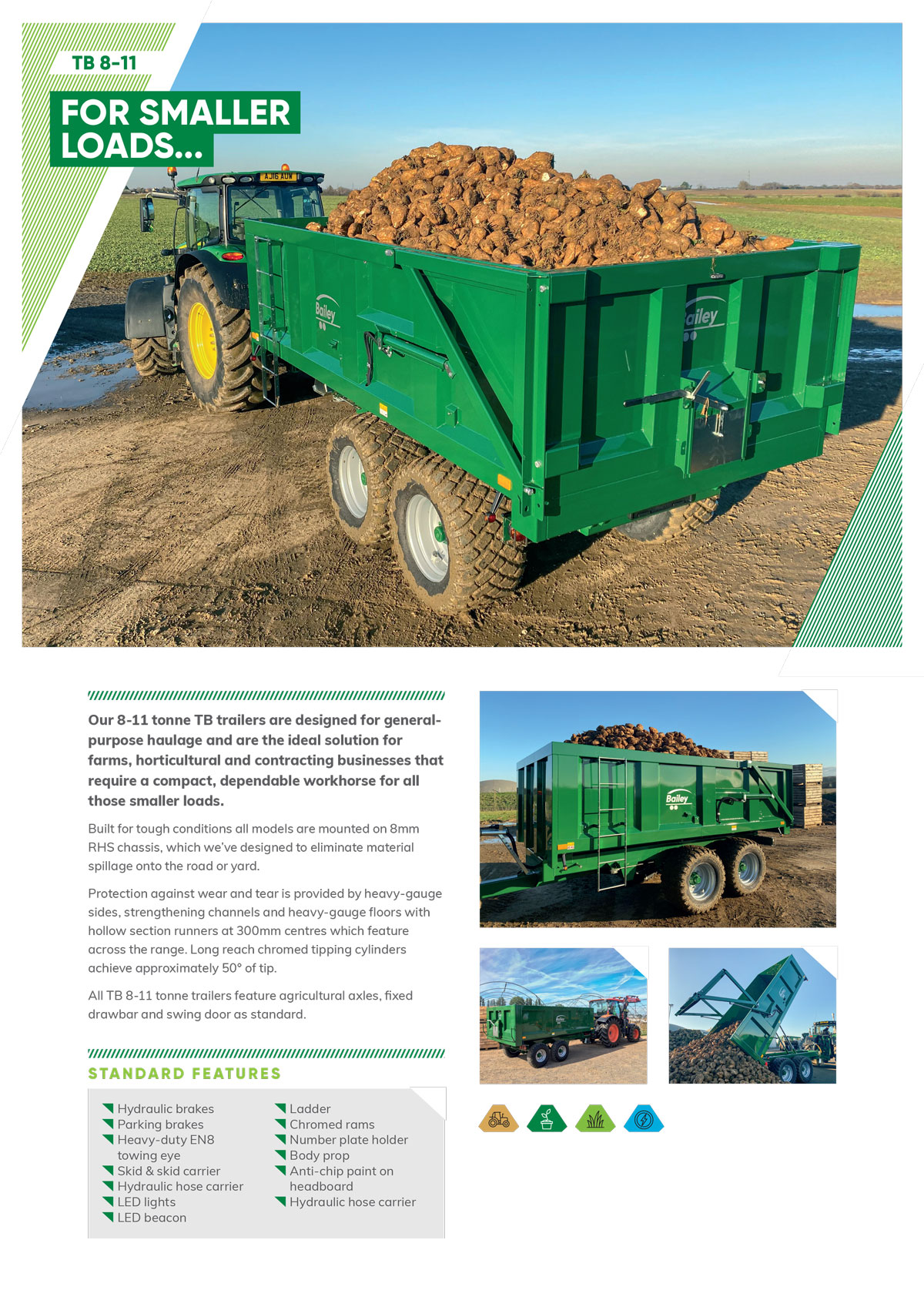

TB8-11 SPEC SHEET PDF
Download your TB8-11 trailer range specification sheet (featuring full CD drawings and additional technical information) as a PDF for easy offline viewing.
Looking for our main brochure of maintenance manuals? Visit the Operators Hub here ››
Click image to download PDF
Click image to download PDF
