BUILT FOR HEAVY-DUTY HAULAGE…

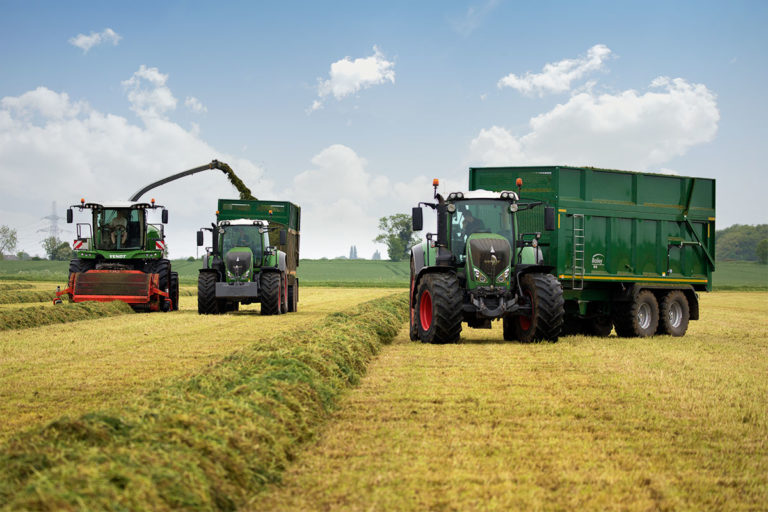

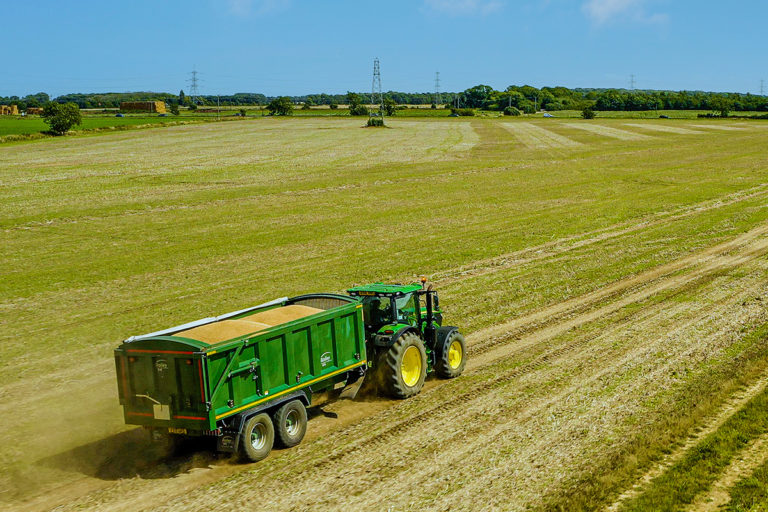

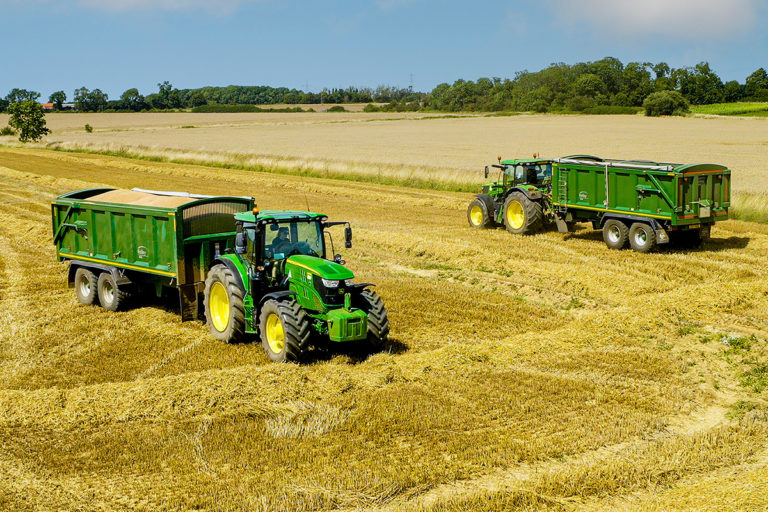

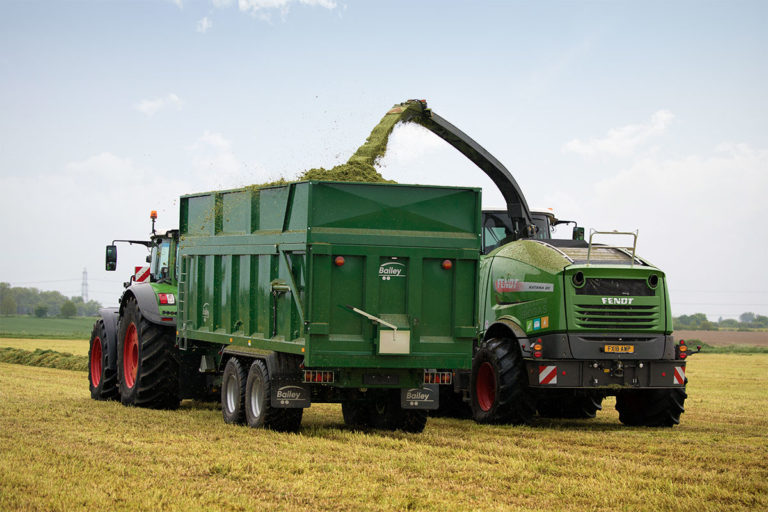

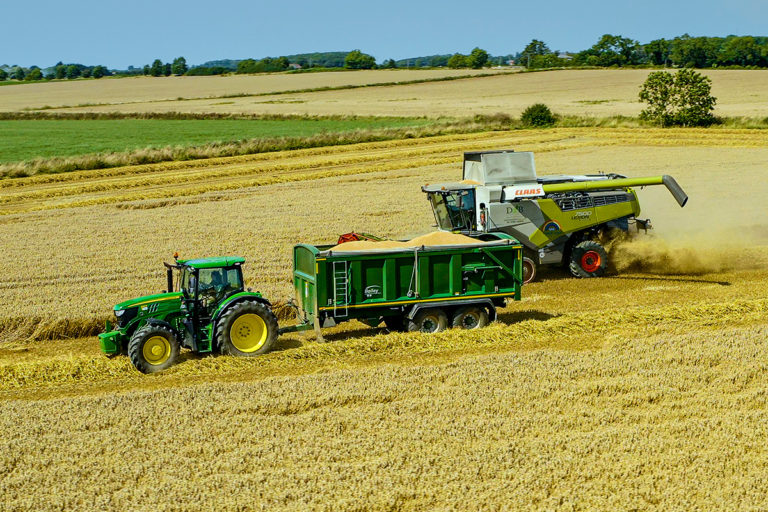

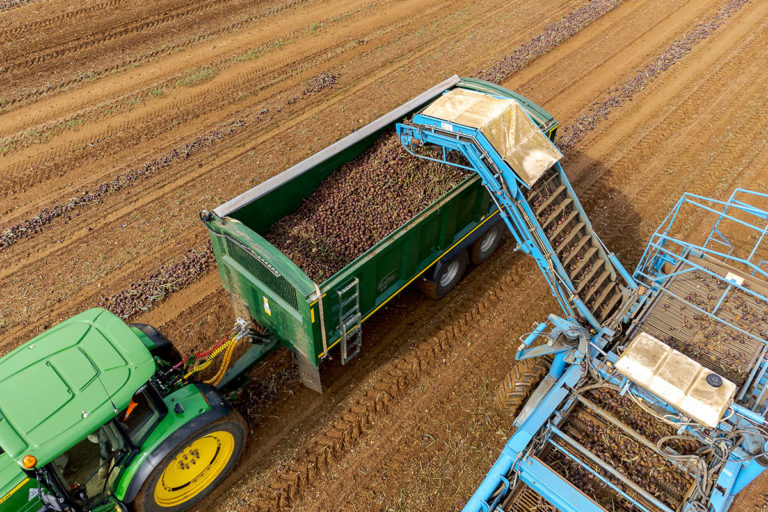

Whether your work is arable, vegetable or silage, TB will haul the lot. Available from 21.7m3 through to 51m3, TB could be the only trailer you need.
TB is designed for tough off-road conditions. We mount all models on either an 8 or 10 mm RHS chassis; this clean design eliminates spillage of materials on road or yard.
On the move you’re always in control. Heavy-duty commercial axles on tandem springs and a sprung drawbar featuring a leaf spring ensures the ride is smooth on all terrains, whether partially or fully loaded. The hydraulic braking system works in tandem with your tractor, which is vital when braking suddenly. Mudguards fitted as standard to protect the trailer against debris and surface spray.

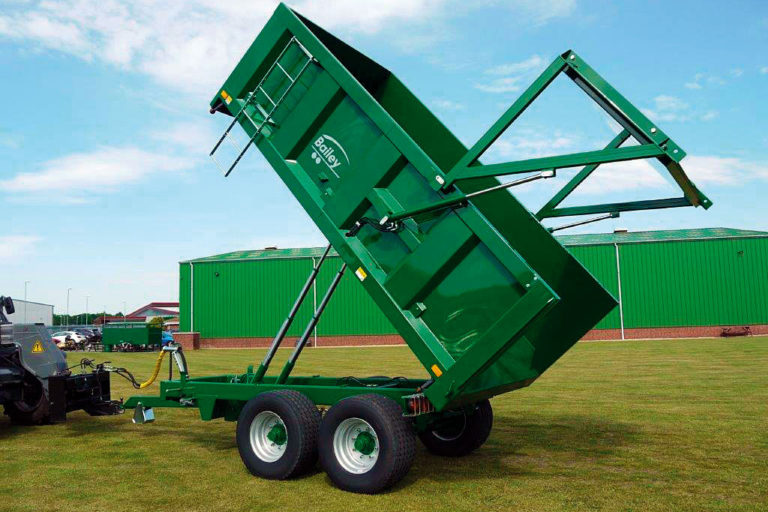

To compensate for wear and tear when loading heavy materials, all models feature heavy-gauge sides, strengthening channels and heavy-gauge floors with hollow section runners at 300 mm centres. Long reach chromed tipping cylinders deliver approximately 50º of tip.

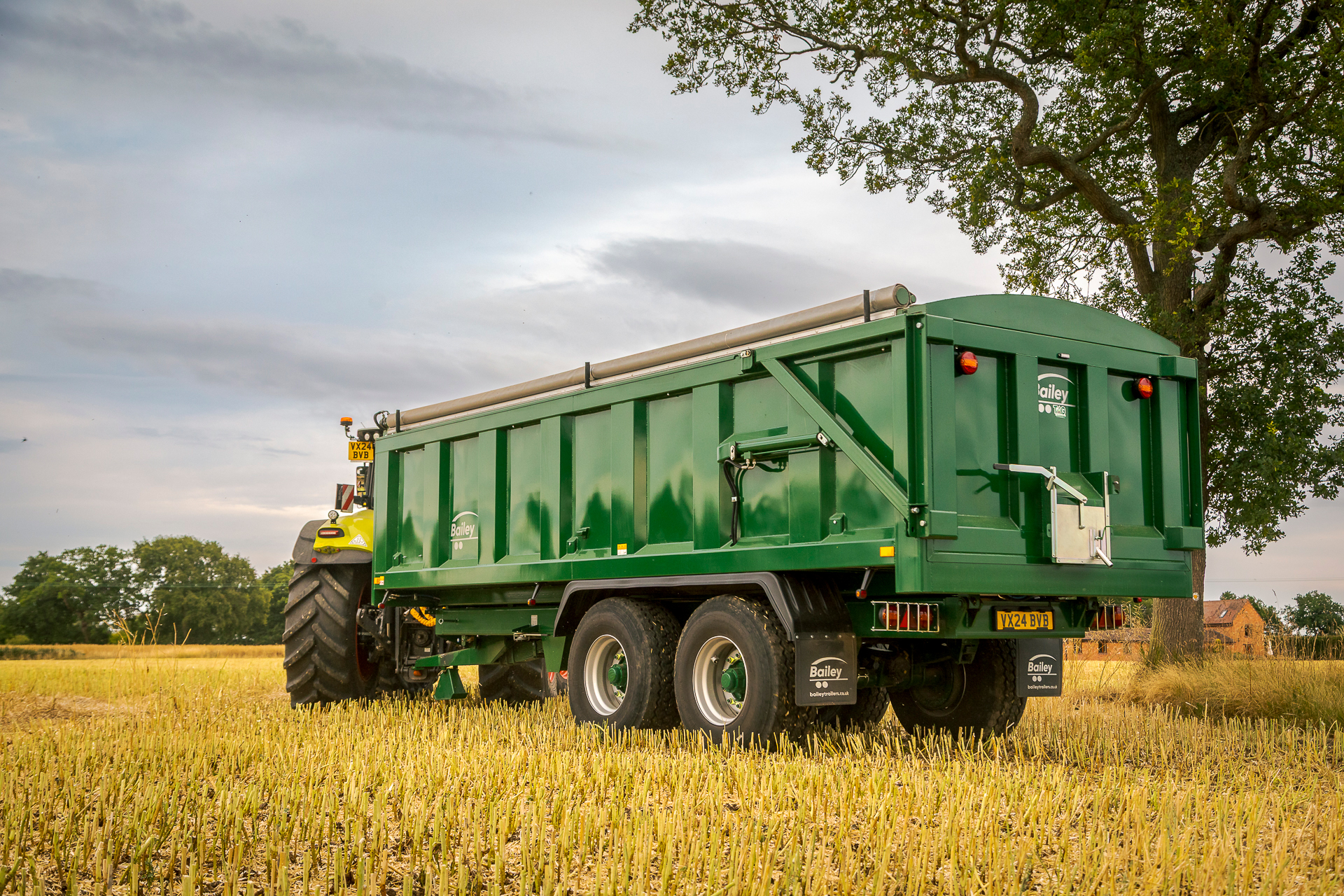

Hydraulic rear door
The hydraulic rear door features a lock valve, which secures the door tightly, and a safety valve, which prevents the door from being opened when the trailer is in the down position. Long reach 2 way rams are retained in any position to allow controlled discharge of free flowing loads, plus greater clearance for heaped loads.
ENQUIRE NOW
Ready to configure your TB16-24 trailer?
Find your preferred Bailey Trailers distributor using the dropdowns below – first choose your region, then select your dealer, and finally click ‘View Details’.
STANDARD FEATURES
✓ Air brakes and load sensing
✓ Sprung drawbar
✓ Hydraulic brakes
✓ TB 16-20 2 x com/10 stud axles
✓ TB 22-24 3 x com/10 stud axles
✓ Heavy-duty EN8 towing eye
✓ Parking brakes
✓ Hydraulic door
✓ Skid & skid carrier
✓ Hydraulic hose carrier
✓ Rear LED lights
✓ Rear top lights
✓ LED beacon
✓ Ladder
✓ Plastic mudguards with flaps (16t-20t)
✓ Metal mudguards with flaps (22t-24t)
✓ Chromed rams
✓ Number plate holder
✓ Body prop
✓ Anti-chip paint on headboard
SIZES / DIMENSIONS / TYRES
Model |
Capacity m3 |
LxWxH mm |
Loading height mm |
Tyres |
Suspension |
TB 16 |
21.7 |
6600x2500x1375 |
2700 |
385/65 R22.5 |
32 tonne 3 leaf |
TB 18 |
23.7 |
7200x2500x1375 |
2700 |
385/65 R22.5 |
32 tonne 3 leaf |
TB 20 |
25.7 |
7800x2500x1375 |
2800 |
445/65 R22.5 |
32 tonne 3 leaf |
TB 22 |
30.7 |
8400x2500x1375 |
2800 |
445/65 R22.5 |
48 tonne 3 leaf |
TB 24 |
32.9 |
9000x2500x1375 |
2950 |
445/65 R22.5 |
48 tonne 3 leaf |
WINDOWS
✓ Front window
✓ Full front window
✓ Arched front window
✓ Extra high arched (Gypsy caravan)
✓ Extra deep arched (1000 deep)
SILAGE KIT
✓ 900mm / 750mm / 600mm
✓ 300mm Sidecatcher (Blowboard)
✓ Quick Release Silage with Straps
SHEETING
✓ Rollover sheet
✓ Hydraulic Side to Side
✓ Hydraulic Front to Back
✓ Front working platform
DOORS
✓ Potato Chute
✓ Grain chute with handle
✓ Grain sock
✓ Grain sampler
SIDES AND FLOORS
✓ Extra depth (75mm stages)
✓ Extra thick floor
✓ Extra thick sides
✓ Hydraulic Sides
LIGHTS
✓ Extra Flashing Beacon
✓ On/Off Switch for Flashing Beacon
✓ Reversing Lights & Mudflaps
✓ Internal Light
✓ High Visibility Safety Strips
TOWING EYES
✓ Rear Towing Eye
✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – Cup Ball
✓ Scharmuller Hitch – Hitch Eye
GUARDS, BRAKES AND SUSPENSION
✓ Upgrade to Metal Mudguards
✓ Steering Commercial Axle
✓ Front Rubber Mudflaps
✓ Auto Slack Adjusters
✓ ABS Brakes
✓ Hydraulic Brake Load Sensing
✓ Air Suspension
MISCELLANEOUS
✓ Blower Conversion Kit
✓ Blower Conversion Kit with Internal Partition
✓ Fold Up Trailer Skid (Shoe)
✓ Greasing Bank – Suspension and Axles
✓ Greasing Bank – Hydraulic Door
✓ Hinged Rear Draw Bar (Hydraulic to Rear)
✓ Hinged Rear Draw Bar (Hydraulic and Air to Rear)
✓ Jack – Screw
✓ Jack – Hydraulic
✓ Jack – Hydraulic w/Hand Pump
✓ Reversing Camera
✓ Storage Rack
✓ Twin Tipping Pipes
✓ Toolbox
✓ Electric / Hydraulic Weighing System
✓ Load Cell Weighing System
✓ Wooden Nudge Bar
✓ Wheel Nut Indicators
✓ Bespoke Colour
CLICK ON ANY IMAGE TO SEE A LARGER VERSION

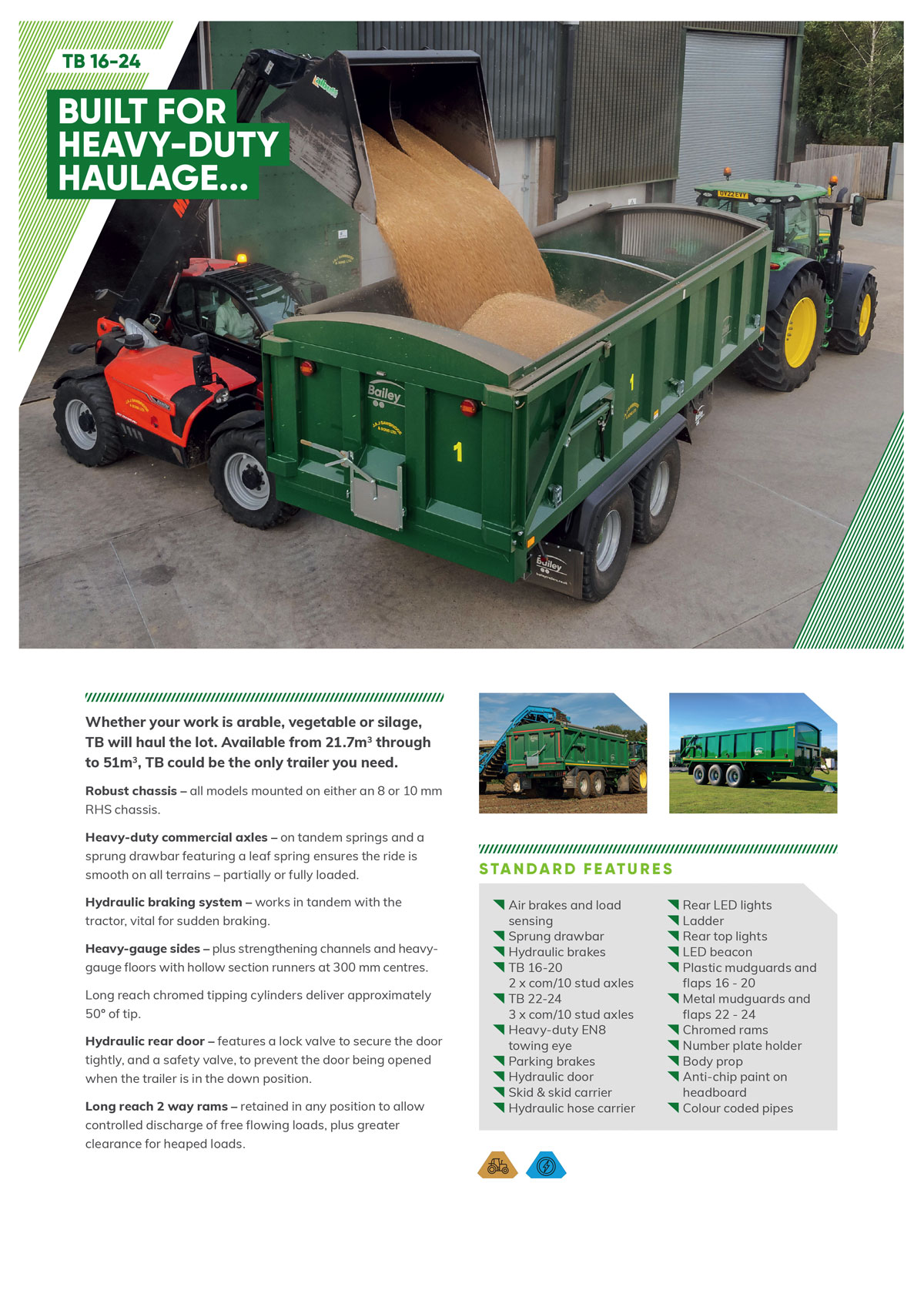

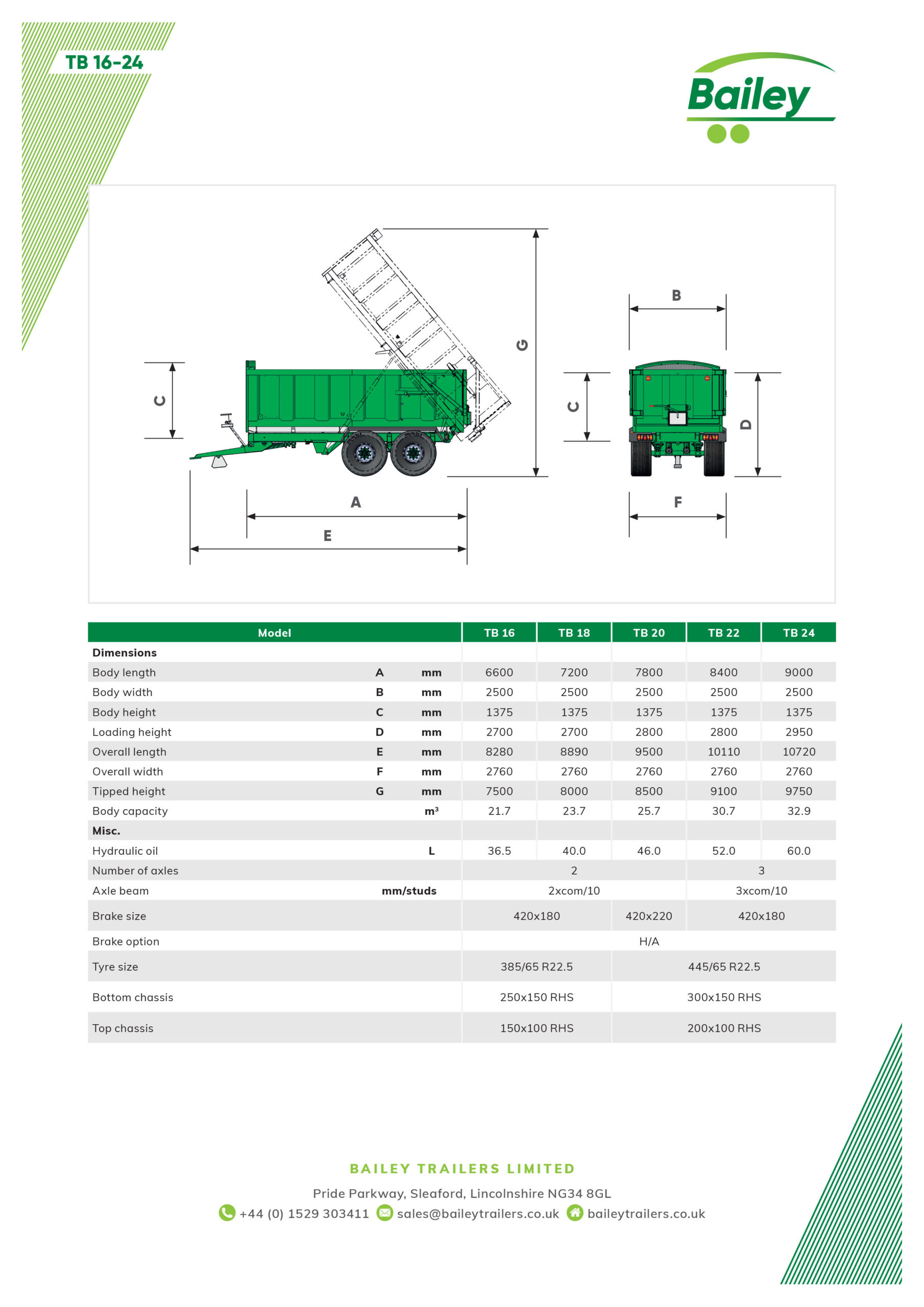

TB16-24 SPEC SHEET PDF
Download your TB16-24 trailer range specification sheet (featuring full CD drawings and additional technical information) as a PDF for easy offline viewing.
Looking for our main brochure of maintenance manuals? Visit the Operators Hub here ››
Click image to download PDF
Click image to download PDF
